Product detailed description

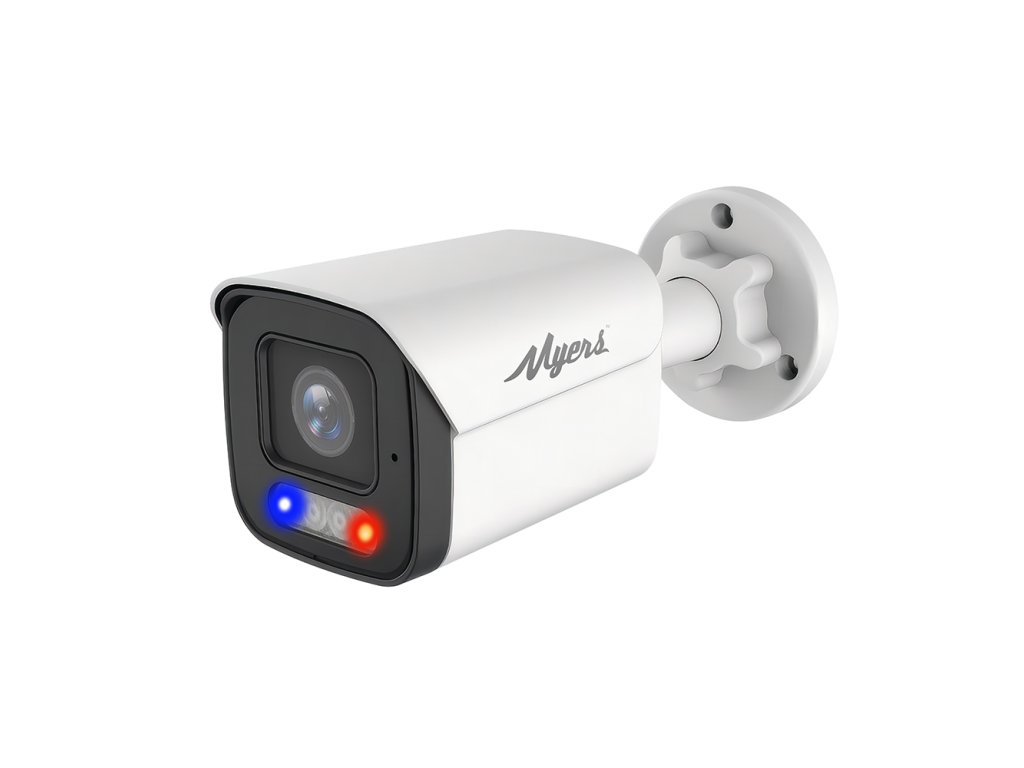

The Myers 8MP Bullet FADA is a CCTV bullet camera featuring an 8-megapixel resolution with a 1/2.7" CMOS sensor. This network surveillance camera delivers a main stream resolution of 3840×2160 at 10 fps and supports H.264 and H.265 video compression codecs.
The camera provides an 88-degree horizontal and 58-degree vertical field of view through its 2.8mm spherical lens with M12 mount. Illumination is provided by 4 LEDs combining IR LED and White LED technology with a distance of 25 meters. The sensor offers 72dB wide dynamic range, 0.01 lux sensitivity, and 48dB signal-to-noise ratio with Day/Night modes including Auto, Color, and Black&White. Video functions include AGC, AWB, BLC, OSD, Privacy mask, and AEC. Human detection smart analytics is available. Network connectivity uses RJ-45 10/100Base-T with ONVIF 2.4+ protocol integration, supporting Cloud, DDNS, NTP, RTSP, HTTPS, and SMTP functions.
The metal housing and mount carry IP67 ingress protection rating with dimensions of 100×72×71mm and 500g weight. Power options include 12V DC with 1000mA consumption or PoE Class 0. Operating temperature ranges from -40 to 60°C with 20-95% RH humidity tolerance. The camera includes a 3-year warranty.
Product details
| Model |
8MP Bullet FADA
|
| SKU |
5859
|
Encoder
| Main stream |
3840x2160@10 fps
|
| Sub stream |
800x448@25 fps
|
| Video codec |
H.264,
H.265
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2.8x2.8 μm
|
| Day/Night mode |
Black&White,
Auto,
Color
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
48 dB
|
| Exposure modes |
Manual,
Auto
|
| Exposure range |
1/25 - 1/10000 s
|
| Video functions |
AGC,
AWB,
BLC,
OSD,
Privacy mask,
AEC
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.6
|
| Focal length |
2.8 mm
|
| Horizontal view |
88°
|
| Vertical view |
58°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤25 m
|
| Number of LEDs |
4 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
Cloud,
DDNS,
IP FILTER,
Email,
NTP,
UPnP,
RTP/RTSP,
HTTPS,
SMTP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| ONVIF support |
ONVIF 2.4+
|
| ONVIF port |
8899
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Desktop apps |
Setup Tool,
Myers
|
| Mobile app |
Myers
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
100 x 72 x 71 mm
|
| Weight |
500 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
1000 mA
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
