Product detailed description

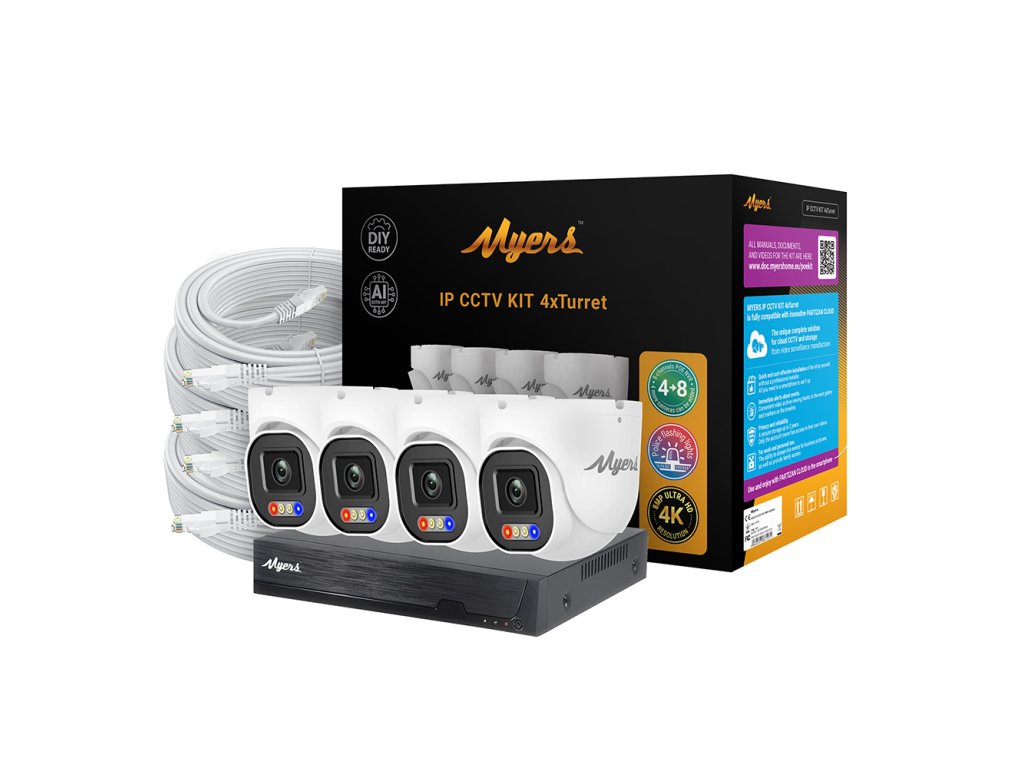

The Myers 8CH IP KIT 8MP 4xTurret FADA is a CCTV surveillance system from the Cloud series, featuring an 8-channel IP network video recorder with four 8MP turret cameras. This kit supports up to 16 cameras and provides H.265+ and H.265 video compression for efficient storage and bandwidth management.

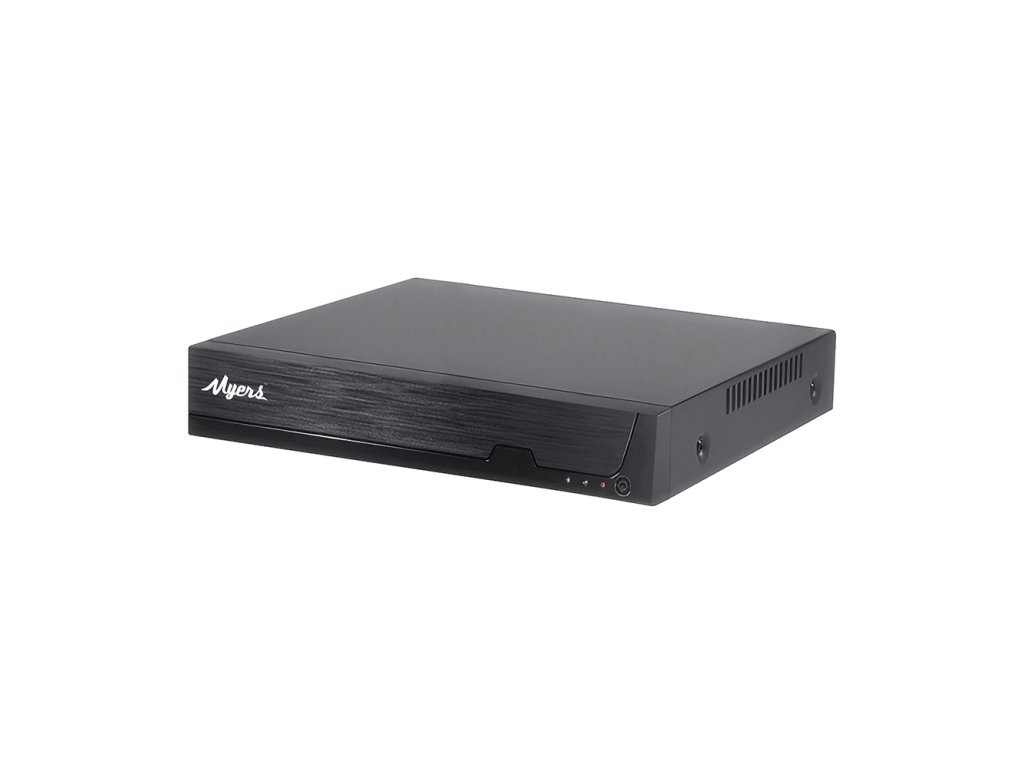

The NVR offers recording at 16 channels with 25 fps and features 4 built-in 10/100 PoE ports for simplified camera connectivity. Smart analytics include human detection, line crossing detection, intrusion detection, and face detection. The system supports multiple display resolutions up to 2560x1440 with video splitter modes of 1, 4, 9, 16, 2, and 6 channels. Video outputs include VGA and HDMI, while cloud abilities provide remote access, cloud recording, and PUSH notifications through the Partizan mobile app.

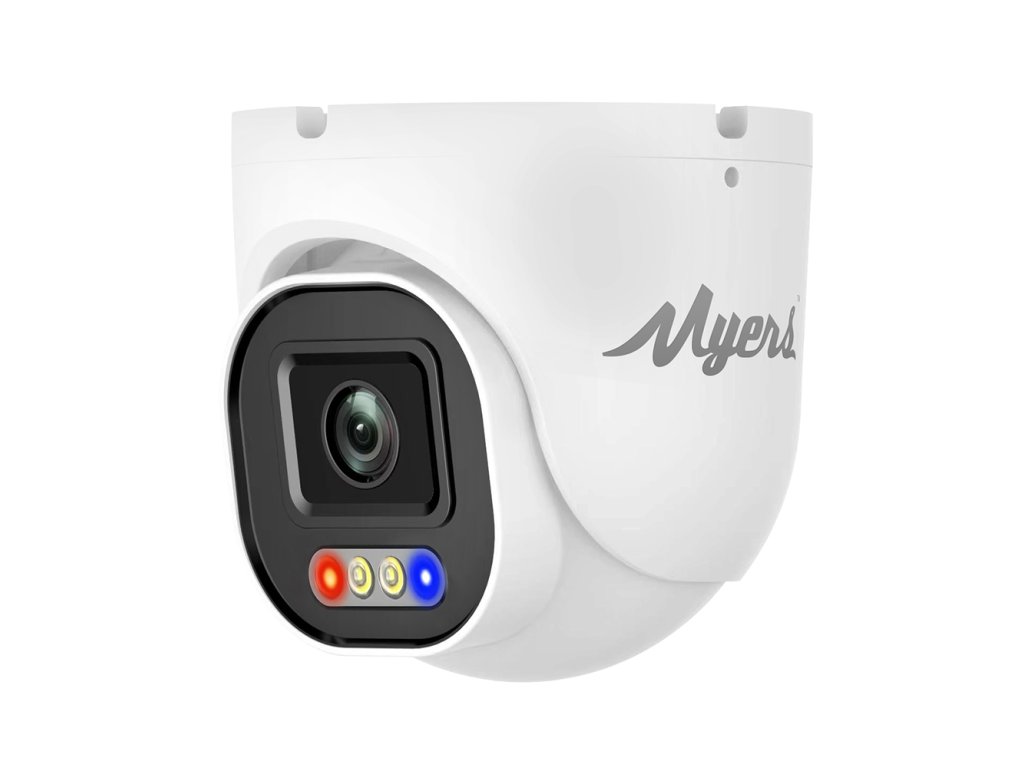

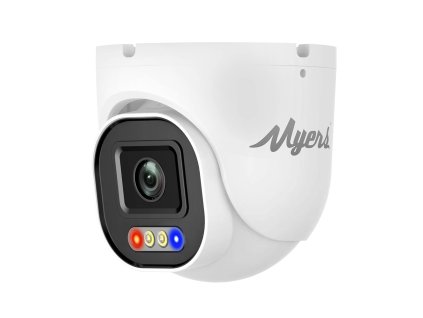

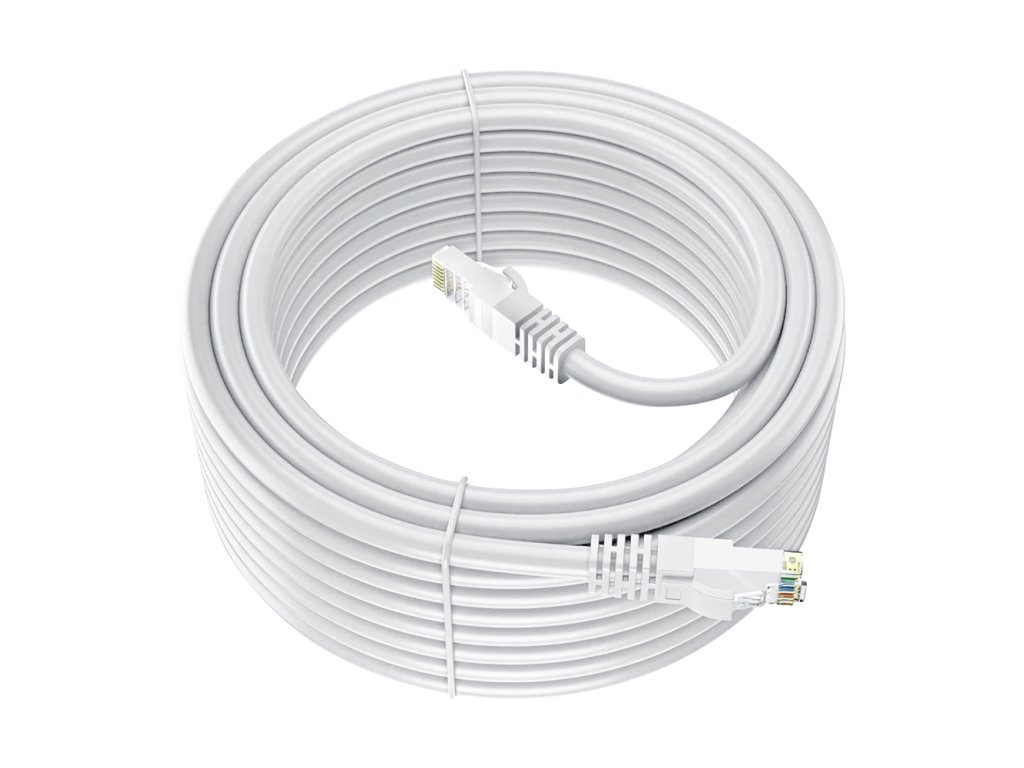

The included turret cameras feature 1/2.7" CMOS sensors with 3840x2160 main stream resolution at 10 fps, 2.8mm focal length, 88-degree horizontal view, and 25-meter IR LED distance with IP67 rating. The desktop NVR measures 255x215x43mm with metal housing, supports internal HDD up to 14TB, and operates at -40 to 60°C. The kit includes a 52V DC power supply, optical mouse, and 4 Ethernet cables with 3-year warranty.
Product details
| Model |
8CH IP KIT
|
| Version |
8MP 4xTurret FADA
|
| SKU |
5777
|
| Series |
Cloud series
|
NVR
Encoder
| Maximum cameras |
16 pcs
|
| Recording modes (IP) |
16x8MP@25 fps
|
| Video codec |
H.265+,
H.265
|
Graphical user interface
| Display resolution |
2560x1440, 1920x1080, 1440x900, 1280x1024, 1024x768
|
| Video splitter modes |
1,
4,
9,
16,
2,
6
|
| Languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
Storage
| Internal HDD |
1 x 14 TB
|
| HDD storage (important note) |
For reliable 24/7 operation, it is strongly recommended to use HDDs specifically designed for video surveillance systems. Hard disk drive is not included in the package.
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Ethernet PoE ports |
4 x 10/100 M
|
| Network functions |
TCP/IP,
ICMP,
HTTP,
HTTPS,
FTP,
DHCP,
DNS,
DDNS,
RTP/RTSP,
NTP,
SMTP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Line crossing detection,
Intrusion detection,
Face detection
|
| Smart analytics (important note) |
Smart alarms can only be used with Cloud-series IP cameras
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
External interfaces
| Video output |
VGA,
HDMI
|
| Audio inputs |
1
|
| Audio outputs |
1
|
| USB ports |
2 x USB 2.0
|
Mechanical specifications
| Form factor |
Desktop
|
| Front panel material |
Plastic
|
| Housing material |
Metal
|
| Dimension |
255 x 215 x 43 mm
|
| Weight |
750 g
|
Power
| DC power source |
52 V
|
| DC consumtion |
2300 mA
|
| DC power supply |
Included
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Optical mouse,
Power adapter,
4 x Ethernet cable
|
| Warranty |
3 years
|
IP Camera
Encoder
| Main stream |
3840x2160@10 fps
|
| Sub stream |
800x448@25 fps
|
| Video codec |
H.264,
H.265
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2.8x2.8 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
≤48 m
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/25 - 1/10000 s
|
| Video functions |
AES,
AES,
AGC,
BLC,
OSD,
Privacy mask
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.6
|
| Focal length |
2.8 mm
|
| Horizontal view |
88°
|
| Vertical view |
58°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤25 m
|
| Number of LEDs |
4 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
DDNS,
IP FILTER,
Email,
NTP,
UPnP,
RTP/RTSP,
HTTP,
SMTP,
Cloud
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
Ø93 x 90 mm
|
| Weight |
340 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
1000 mA
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-20 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
Common
| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
