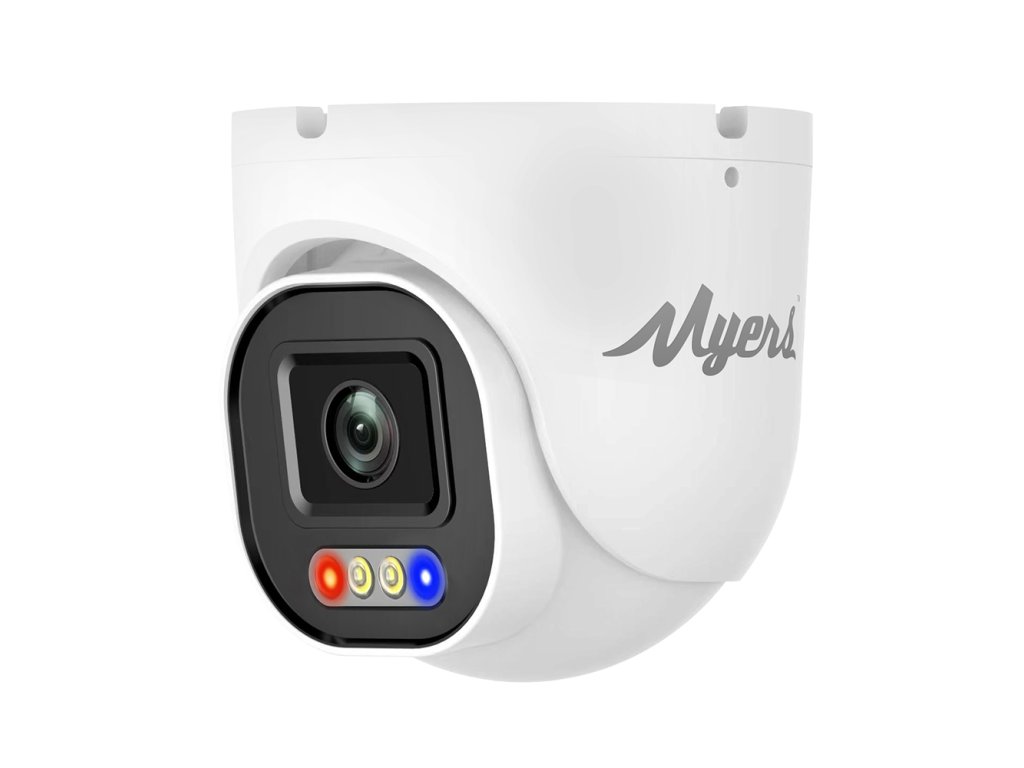

The Myers 8MP Turret FADA is a cloud-enabled IP camera from the Cloud series, featuring an 8-megapixel resolution with a 1/2.7" CMOS sensor. This turret-style camera delivers a main stream of 3840×2160 at 15 fps and a sub stream of 800×448 at 15 fps, supporting H.264 and H.265 video codecs.
The camera offers a spherical lens with M12 mount, 2.8 mm focal length, F1.6 iris, providing 88° horizontal and 58° vertical viewing angles. Illumination is handled by 4 LEDs (IR LED and White LED) with a 25-meter distance range. Day/Night modes include Auto, Color, and Black&White operation, with 72 dB dynamic range WDR, 48 dB S/N ratio, and 0.01 lux sensitivity. Video functions include AES, AGC, AWB, BLC, OSD, and Privacy mask. Smart analytics encompass Human detection, Intrusion detection, Line crossing detection, and Face detection. Cloud capabilities include remote access, cloud recording, and PUSH notifications, accessible via Partizan mobile app and Myers desktop applications.
The metal housing and mount carry IP67 rating, measuring 93 mm diameter by 90 mm height and weighing 340 g. Power options include 12V DC (1000 mA consumption) or PoE Class 0. Operating temperature spans -40 to 60°C with 20-95% RH humidity tolerance. Warranty is 3 years.
Product details
| Model |
8MP Turret FADA
|
| SKU |
5858
|
| Series |
Cloud series
|
Encoder
| Main stream |
3840x2160@15 fps
|
| Sub stream |
800x448@15 fps
|
| Video codec |
H.264,
H.265
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2.8x2.8 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
48 dB
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/50 - 1/10000 s
|
| Video functions |
AES,
AGC,
AWB,
BLC,
OSD,
Privacy mask
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.6
|
| Focal length |
2.8 mm
|
| Horizontal view |
88°
|
| Vertical view |
58°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤25 m
|
| Number of LEDs |
4 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
DDNS,
IP FILTER,
Email,
NTP,
UPnP,
RTP/RTSP,
HTTP,
HTTPS,
TCP/IP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Intrusion detection,
Line crossing detection,
Face detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
Ø93 x 90 mm
|
| Weight |
340 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
1000 mA
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
