Product detailed description
Product details
| Model |
8CH IP KIT
|
| Version |
8MP 4xTurret FADA
|
| SKU |
7308
|
| Series |
Cloud series
|

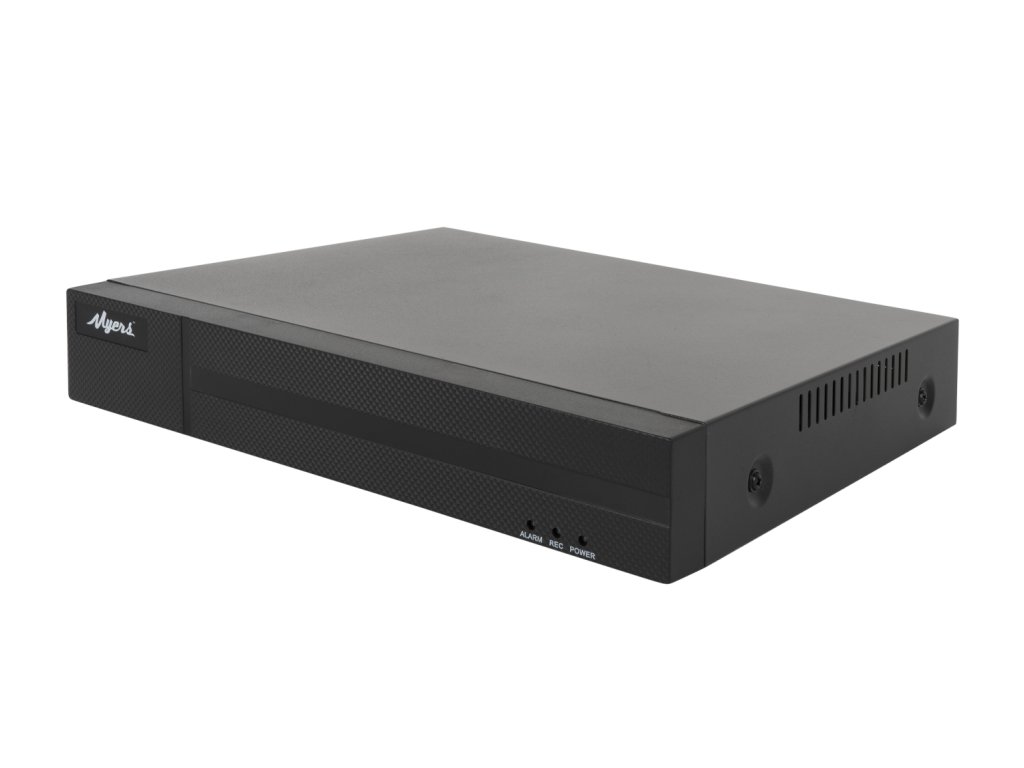

NVR
Encoder
| Maximum cameras |
16 pcs
|
| Recording modes (IP) |
16x8MP@25 fps
|
| Video codec |
H.265+,
H.265
|
Graphical user interface
| Display resolution |
3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024
|
| Video splitter modes |
1,
4,
9,
16,
2,
6
|
| Languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
Storage
| Internal HDD |
1 x 14 TB
|
| HDD storage (important note) |
For reliable 24/7 operation, it is strongly recommended to use HDDs specifically designed for video surveillance systems. Hard disk drive is not included in the package.
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Ethernet PoE ports |
4 x 10/100 M
|
| Network functions |
TCP/IP,
ICMP,
HTTP,
HTTPS,
FTP,
DHCP,
DNS,
DDNS,
RTP/RTSP,
NTP,
SMTP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Line crossing detection,
Intrusion detection,
Face detection
|
| Smart analytics (important note) |
Smart alarms can only be used with Cloud-series IP cameras
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|

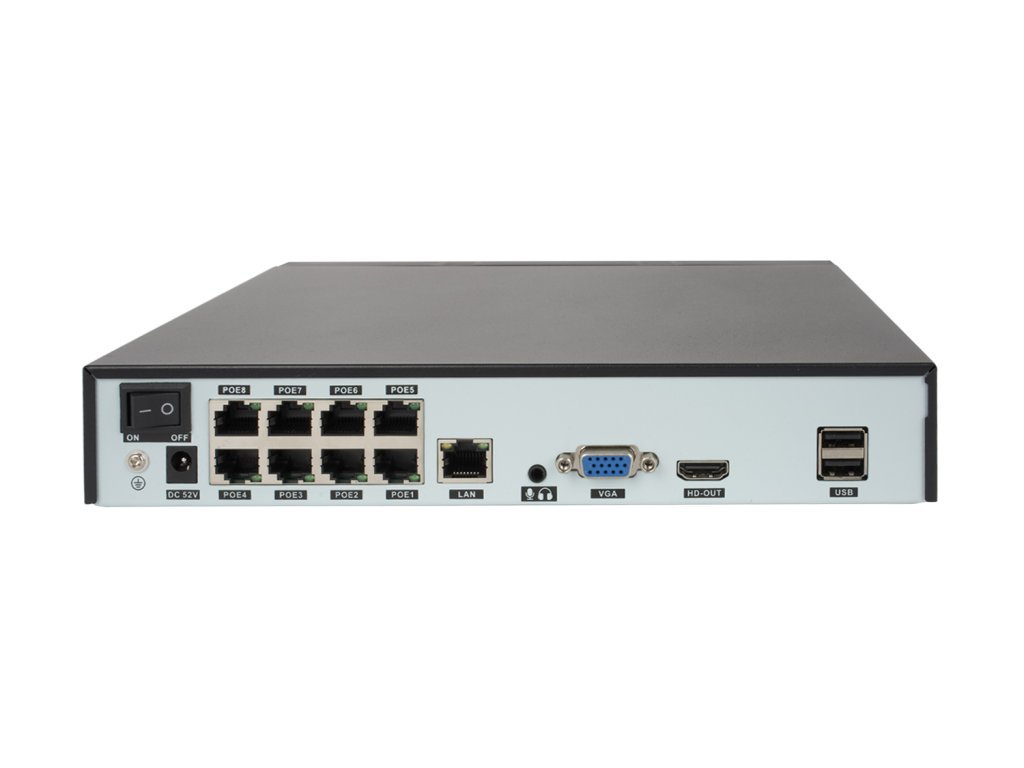

External interfaces
| Video output |
VGA,
HDMI
|
| Audio inputs |
1
|
| Audio outputs |
1
|
| USB ports |
2 x USB 2.0
|

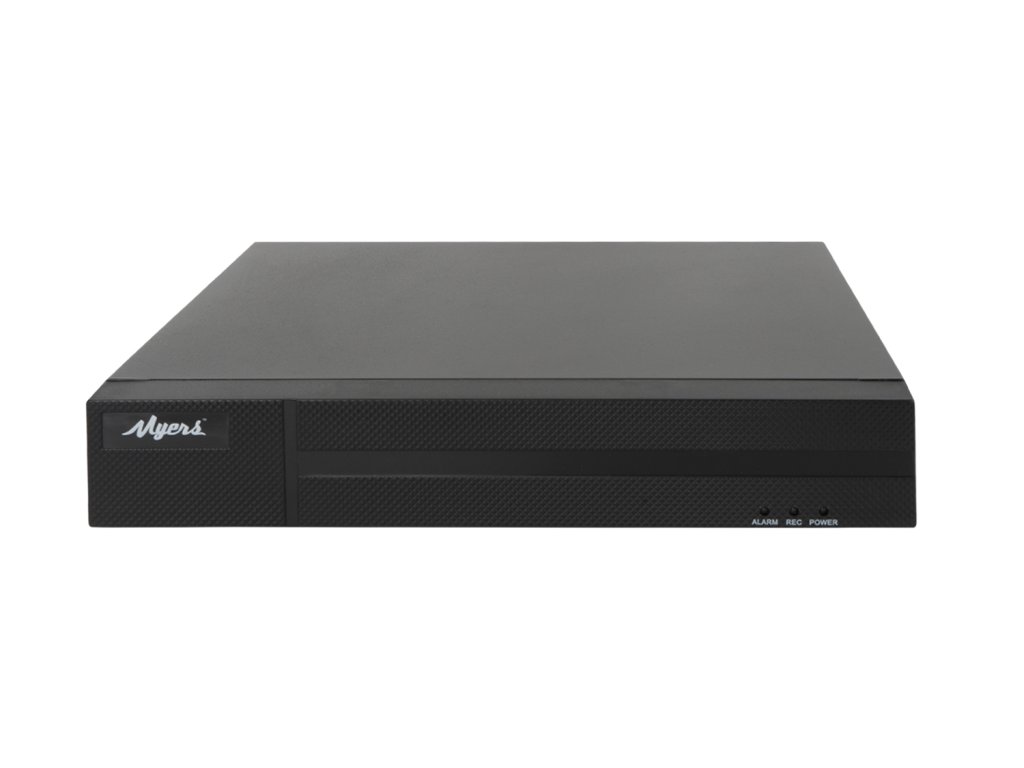

Mechanical specifications
| Form factor |
Desktop
|
| Front panel material |
Plastic
|
| Housing material |
Metal
|
| Dimension |
255 x 215 x 43 mm
|
| Weight |
750 g
|
Power
| DC power source |
52 V
|
| DC consumtion |
2300 mA
|
| DC power supply |
Included
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common

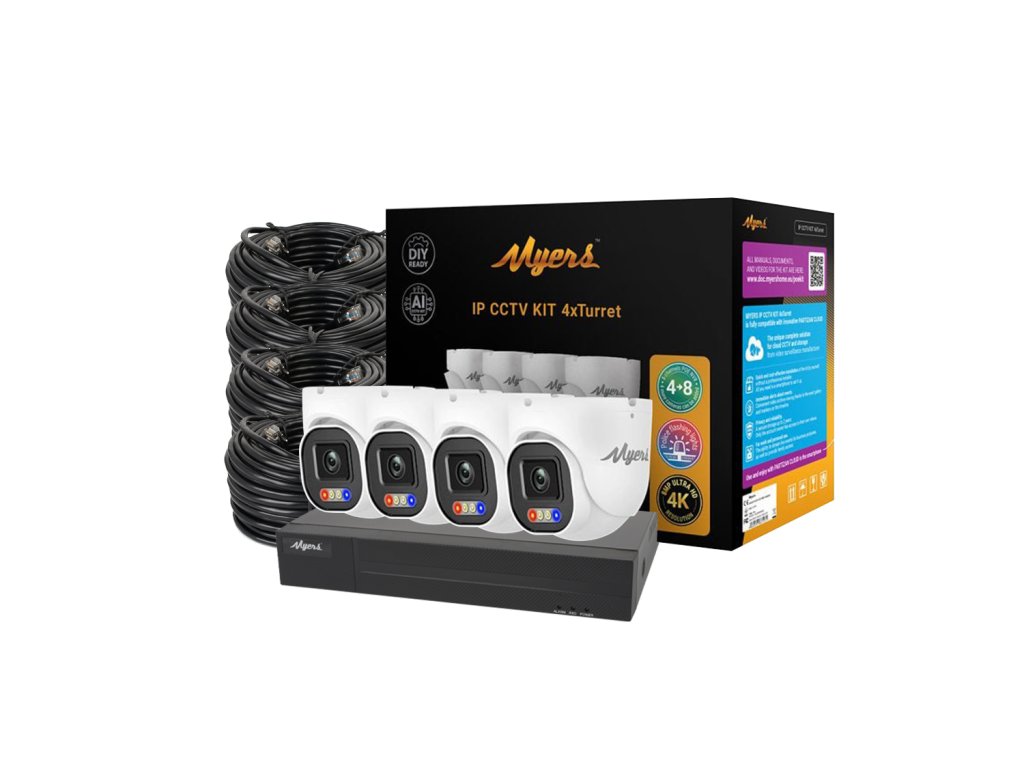

| Package contents |
Optical mouse,
Power adapter,

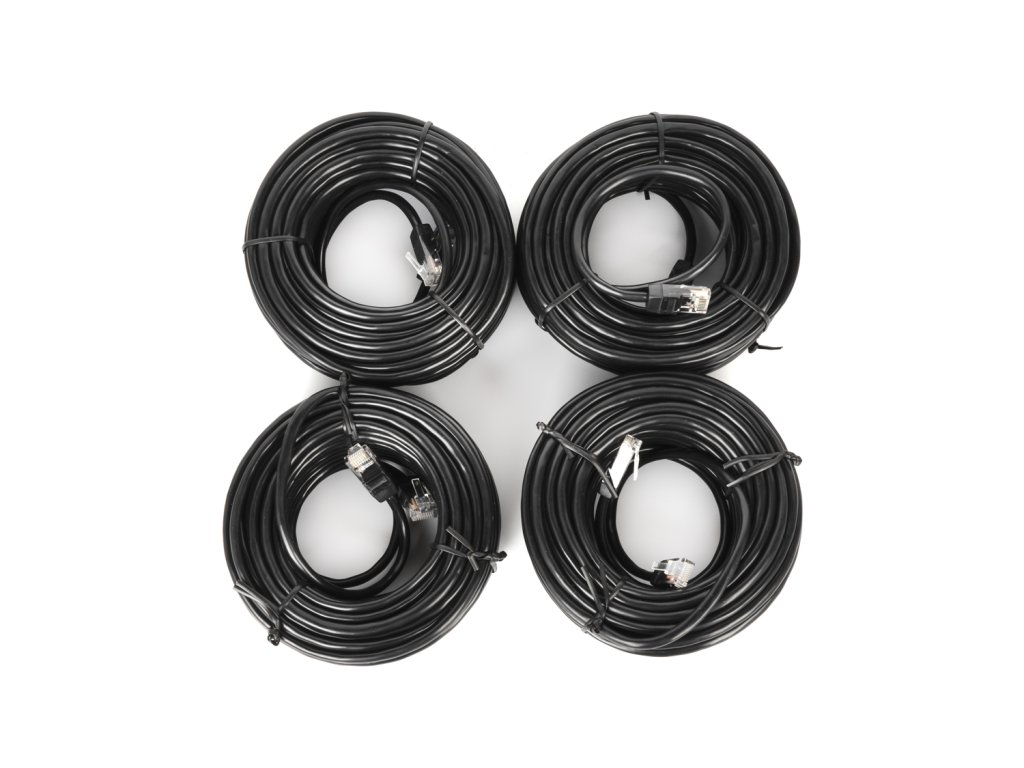

4 x Ethernet cable
|
| Warranty |
3 years
|

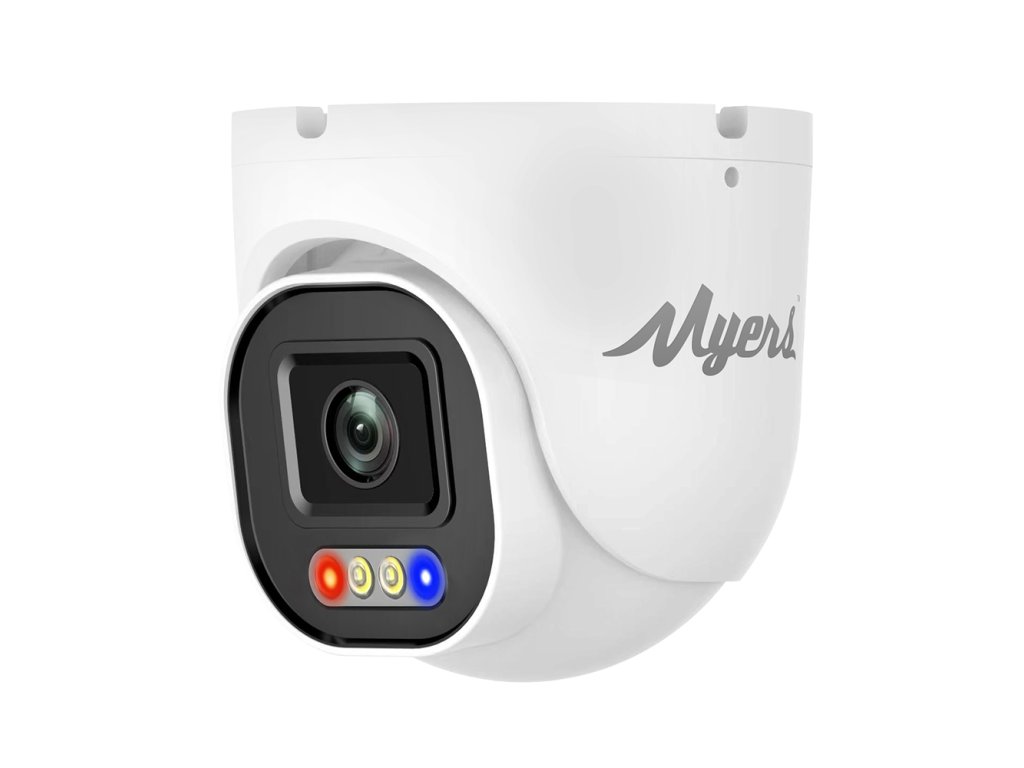

IP Camera
Encoder
| Main stream |
3840x2160@10 fps
|
| Sub stream |
800x448@25 fps
|
| Video codec |
H.264,
H.265
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2.8x2.8 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
≤48 m
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/25 - 1/10000 s
|
| Video functions |
AES,
AES,
AGC,
BLC,
OSD,
Privacy mask,
AWB
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.6
|
| Focal length |
2.8 mm
|
| Horizontal view |
88°
|
| Vertical view |
58°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤25 m
|
| Number of LEDs |
4 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
DDNS,
IP FILTER,
Email,
NTP,
UPnP,
RTP/RTSP,
HTTP,
SMTP,
Cloud
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech,
Ukranian
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
Ø93 x 90 mm
|
| Weight |
340 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
1000 mA
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-20 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
Common
| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
