Product detailed description

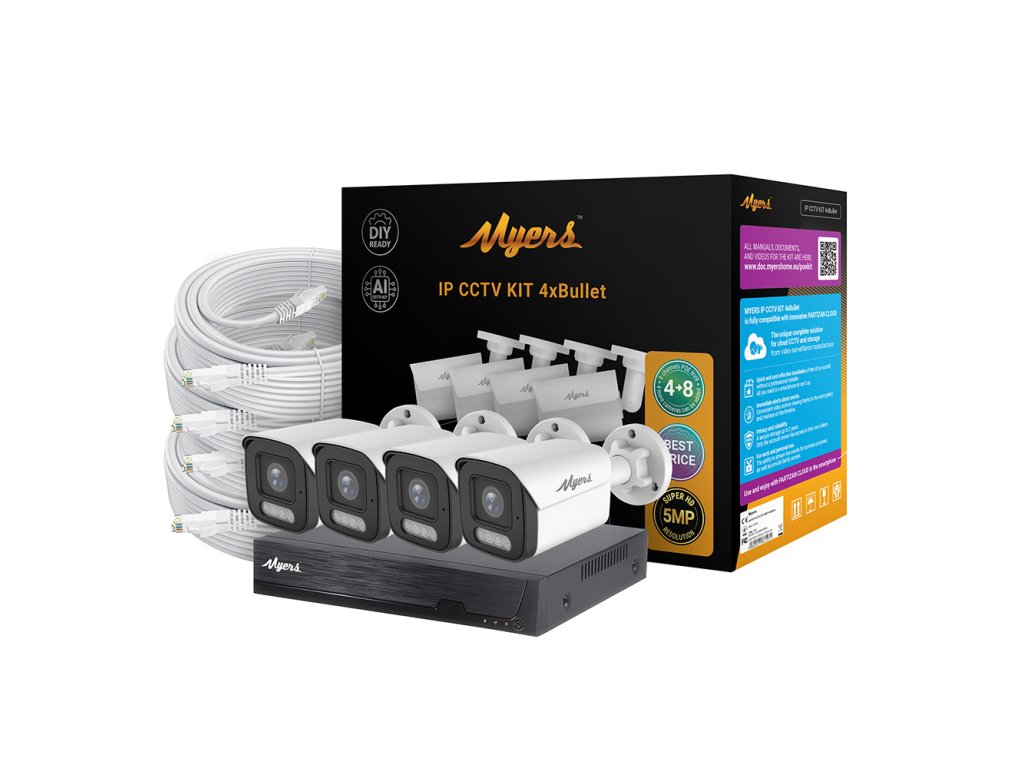

Myers 8CH IP KIT 5MP 4xBullet is a CCTV surveillance kit from the Cloud series, featuring an 8-channel NVR paired with four 5MP bullet cameras. This complete IP video surveillance package supports up to 10 cameras with H.265 and H.265+ video compression.
The NVR provides eight 10/100 PoE ports for camera power and data transmission, with VGA and HDMI video outputs supporting resolutions up to 3840x2160. Smart analytics capabilities include human detection, line crossing detection, intrusion detection, and face detection. The system offers cloud abilities including remote access, cloud recording, and PUSH notifications, accessible via Myers desktop apps, Partizan mobile app, or web browsers. The graphical interface supports 12 languages with video splitter modes of 1, 2, 4, 6, 9, and 10 views.
The included bullet cameras feature a 1/2.7" CMOS sensor with 2880x1616 main stream at 25fps, 2.8mm focal length providing 88° horizontal and 58° vertical viewing angles, and IR/White LED illumination up to 30m distance. Cameras are IP67-rated and operate from -20 to 40°C with PoE Class 0 power. The NVR operates from -40 to 60°C, supports one internal HDD up to 14TB, and includes a 52V DC power supply. Both components carry a 3-year warranty.
Product details
| Model |
8CH IP KIT
|
| Version |
5MP 4xBullet
|
| SKU |
7306
|
| Series |
Cloud series
|

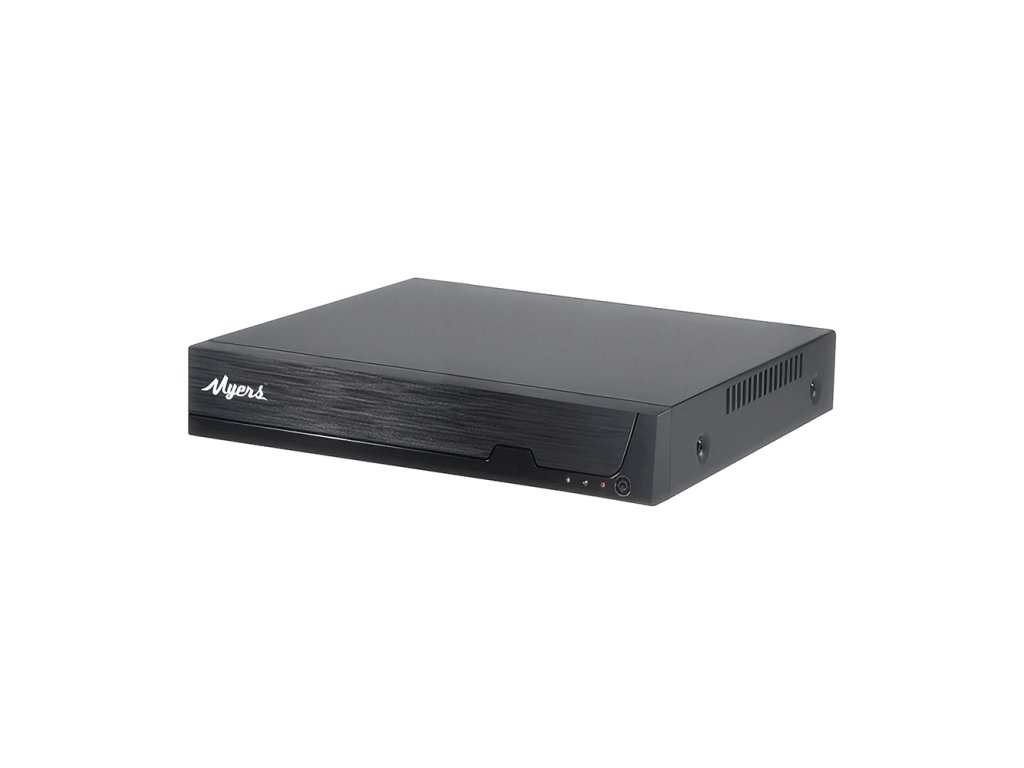

NVR
Encoder
| Maximum cameras |
10 pcs
|
| Recording modes (IP) |
10x8MP@25 fps
|
| Video codec |
H.265,
H.265+
|
Graphical user interface
| Display resolution |
3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024
|
| Video splitter modes |
1,
2,
4,
6,
9,
10
|
| Languages |
English,
Ukranian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech,
German,
Spanish,
Russian
|
Storage
| Internal HDD |
1 x 14 TB
|
| HDD storage (important note) |
For reliable 24/7 operation, it is strongly recommended to use HDDs specifically designed for video surveillance systems. Hard disk drive is not included in the package.
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Ethernet PoE ports |
8 x 10/100 M
|
| Network functions |
TCP/IP,
ICMP,
HTTP,
HTTPS,
FTP,
DHCP,
DNS,
DDNS,
RTP/RTSP,
RTCP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Line crossing detection,
Intrusion detection,
Face detection
|
| Smart analytics (important note) |
Smart alarms can only be used with Cloud-series IP cameras
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Edge,
Mozilla Firefox
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
External interfaces
| Video output |
VGA,
HDMI
|
| Audio inputs |
1
|
| Audio outputs |
1
|
| USB ports |
2 x USB 2.0
|
Mechanical specifications
| Form factor |
Desktop
|
| Front panel material |
Plastic
|
| Housing material |
Metal
|
| Dimension |
260 x 190 x 43 mm
|
| Weight |
750 g
|
Power
| DC power source |
52 V
|
| DC consumtion |
2300 mA
|
| DC power supply |
Included
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Optical mouse,
Power adapter,

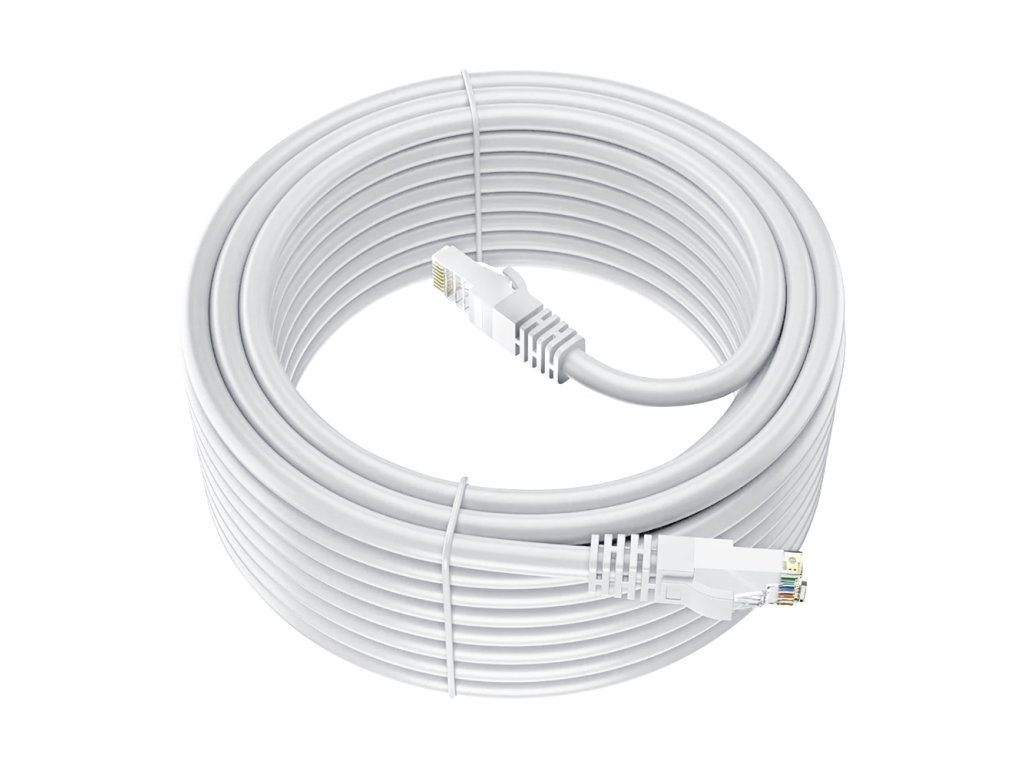

4 x Ethernet cable
|
| Warranty |
3 years
|

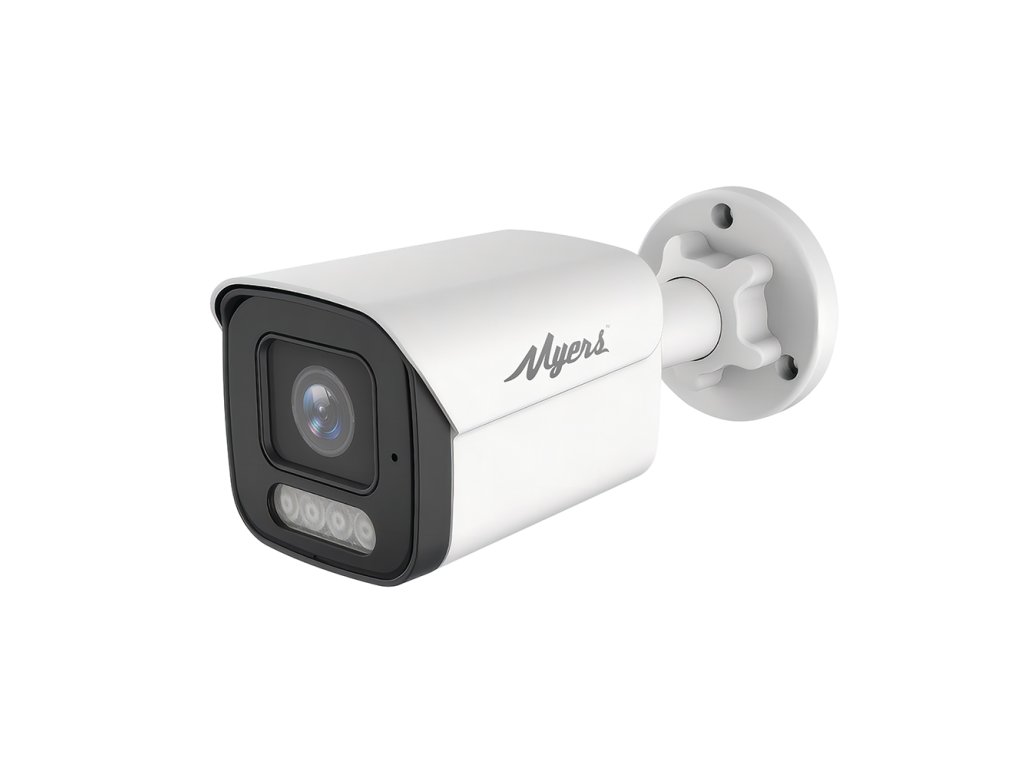

IP Camera
Encoder
| Main stream |
2880x1616@25 fps
|
| Sub stream |
800x448@25 fps
|
| Video codec |
H.264,
H.265
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2.8x2.8 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
≤48 m
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/25 - 1/10000 s
|
| Video functions |
AEC,
AGC,
AWB,
ABF,
BLC,
OSD,
Privacy mask
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.6
|
| Focal length |
2.8 mm
|
| Horizontal view |
88°
|
| Vertical view |
58°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤30 m
|
| Number of LEDs |
4 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
DDNS,
IP FILTER,
Email,
NTP,
UPnP,
RTP/RTSP,
HTTP,
SMTP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
173 x 72 x 71 mm
|
| Weight |
400 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
1000 mA
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-20 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
Common
| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
