Product detailed description

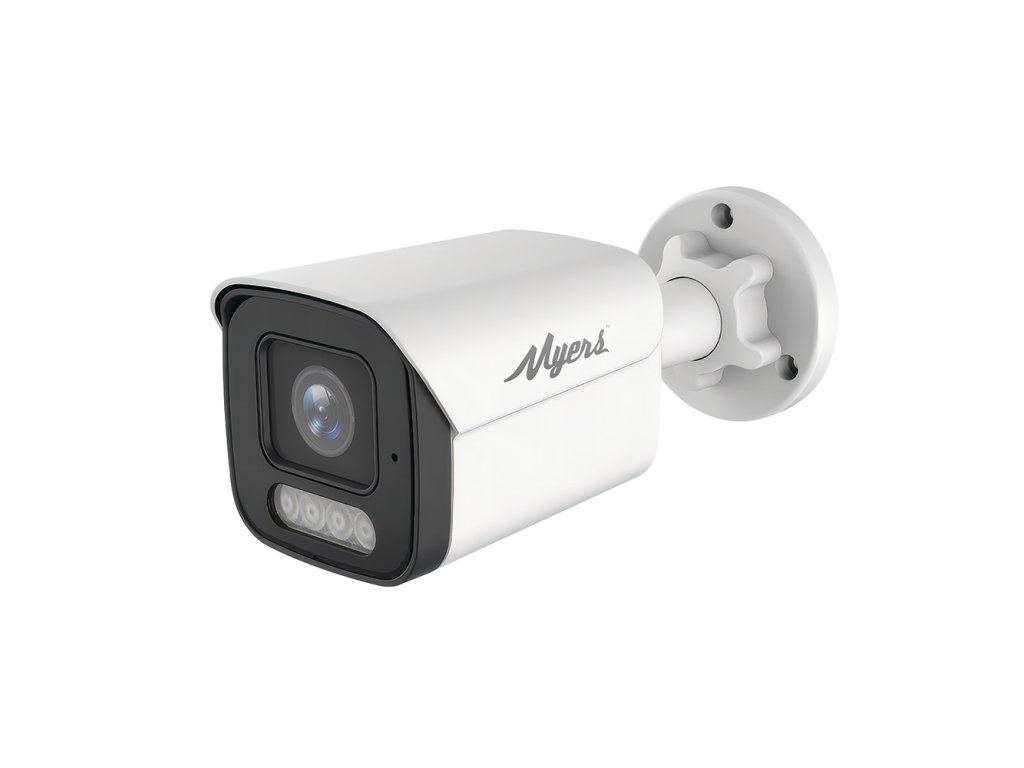

The Myers 5MP Bullet is a cloud-series IP camera featuring a 1/2.7" CMOS sensor with a maximum resolution of 2880×1616 at 25 fps. This bullet-style camera supports H.265 and H.265X video compression and includes a 2.8mm spherical lens with M12 mount, providing an 88° horizontal and 58° vertical field of view.
The camera offers smart analytics capabilities including human detection, intrusion detection, and line crossing detection. Illumination is provided by 4 LEDs combining white LED and IR LED types with a distance of 30 meters. Video functions include AES, AGC, AWB, BLC, OSD, privacy mask, slow shutter, and WDR with 72 dB dynamic range. The unit supports ONVIF 2.4+ protocol integration and cloud features including remote access, cloud recording, and PUSH notifications. Network connectivity includes DHCP, DDNS, NTP, UPnP, RTP/RTSP, HTTPS, and SMTP functions.
The metal housing and mount carry IP67 protection rating, with dimensions of 100×72×71mm and a weight of 400g. Power options include 12V DC with 1000mA consumption or PoE Class 0. Operating temperature ranges from -40 to 60°C with humidity tolerance of 20-95% RH non-condensing. The product includes a drill template and mounting kit with a 3-year warranty.
Product details
| Model |
5MP Bullet
|
| SKU |
5857
|
| Series |
Cloud series
|
Encoder
| Main stream |
2880x1616@25 fps, 2560x1440@25 fps, 2304x1296@25 fps, 1920x1080@25 fps, 1280x720@25 fps
|
| Sub stream |
720x576@20 fps, 352x576@20 fps, 352x240@20 fps, 352x288@20 fps
|
| Video codec |
H.265,
H.265X
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2.8x2.8 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
48 dB
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/60 - 1/10000 s
|
| Video functions |
AES,
AGC,
AWB,
BLC,
OSD,
Privacy mask,
Slow shutter,
WDR
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.6
|
| Focal length |
2.8 mm
|
| Horizontal view |
88°
|
| Vertical view |
58°
|
IR LED
| LED type |
White LED,
IR LED
|
| Distance |
≤30 m
|
| Number of LEDs |
4 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
Cloud,
DDNS,
IP FILTER,
Email,
NTP,
UPnP,
RTP/RTSP,
HTTPS,
SMTP,
AlarmServer,
Serial pass-through ,
Mobile reported
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| ONVIF support |
ONVIF 2.4+
|
| ONVIF port |
8899
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Intrusion detection,
Line crossing detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Setup Tool,
Partizan
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
100 x 72 x 71 mm
|
| Weight |
400 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
1000 mA
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
