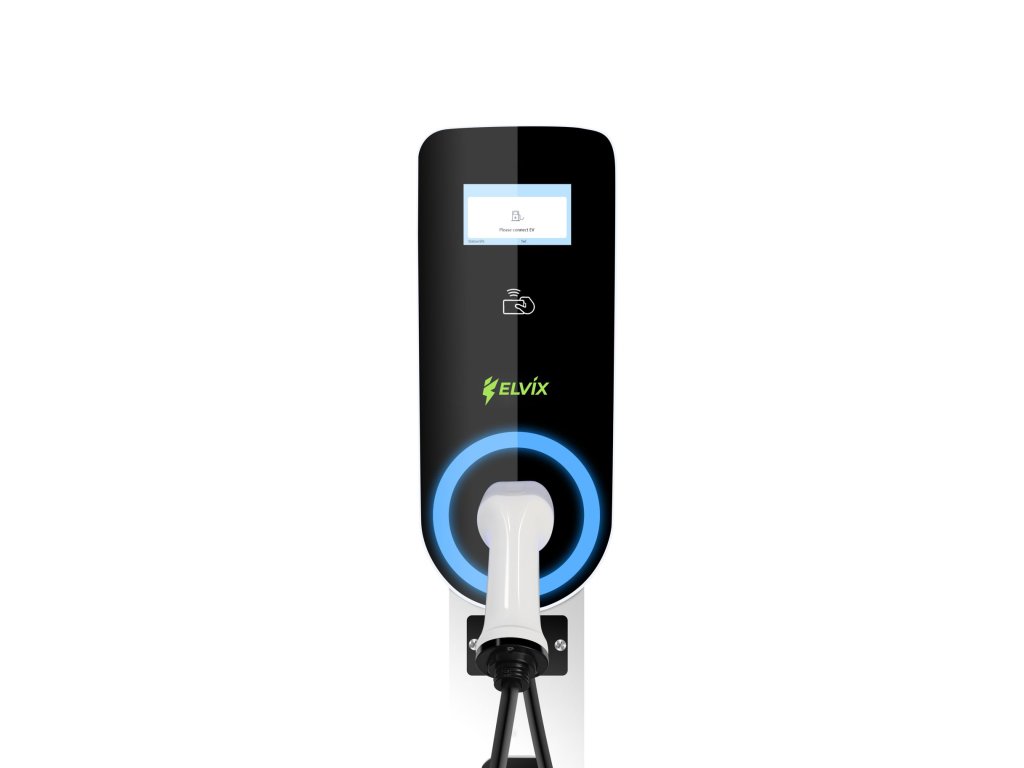

Wall Charger Elvix WBAC 4958 T2 1 cable 22KW 5M RFID

The Elvix WBAC 4958 T2 is a high-performance wall-mounted AC charger designed for efficient charging with a maximum output power of 22kW. Featuring a 4.3-inch LCD color display and a plug-and-play control mode, it ensures user-friendly operation. This model includes an RFID reader for secure access. With comprehensive safety features, it provides reliable protection against overvoltage, undervoltage, overload, short circuits, and more.

Specifications:

Input Voltage/Current: Three-phase 16A / AC 400V ±20%
Output Voltage/Current: Three-phase 16A / AC 400V ±20%
Maximum Power: 22KW
Cable Length: 5 m
Charging Interface Type: IEC 62196-2, Type 2
Efficiency: ≥96%
Power Factor: >0.99 (Load: 50%-100%)
Protection Level: IP54
Shell Material: PC+ABS, flame retardant and fireproof, UL-94 VO
Interface: 4.3 inches LCD color display
Control Mode: Plug and play
Payment Method: Credit card
Installation Mode: Wall-mounted
Cooling Mode: Forced air cooling
Safety Features: Overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, emergency stop protection
Communication Protocol: OCPP1.6J
Ambient Temperature Range: -30 ~ 50℃
Overall Dimension: 180x146x421 mm
Weight: Approximately 7-8 kg
Color: White/Black

Package Includes:

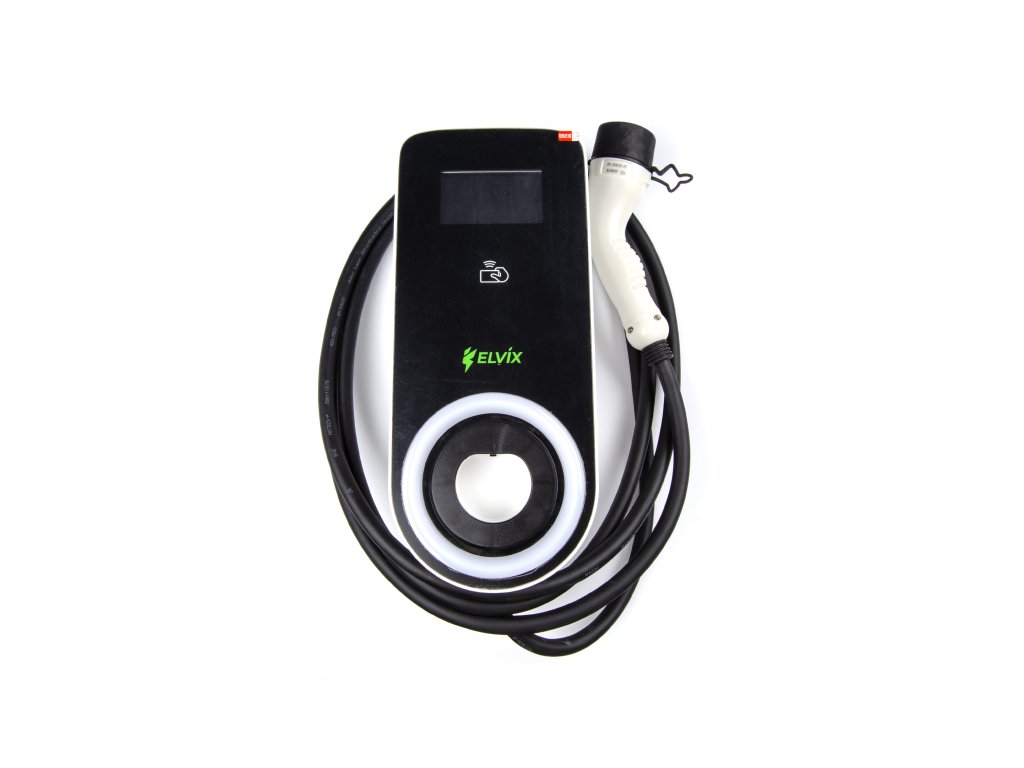

1x Charger
1x Charging Cable

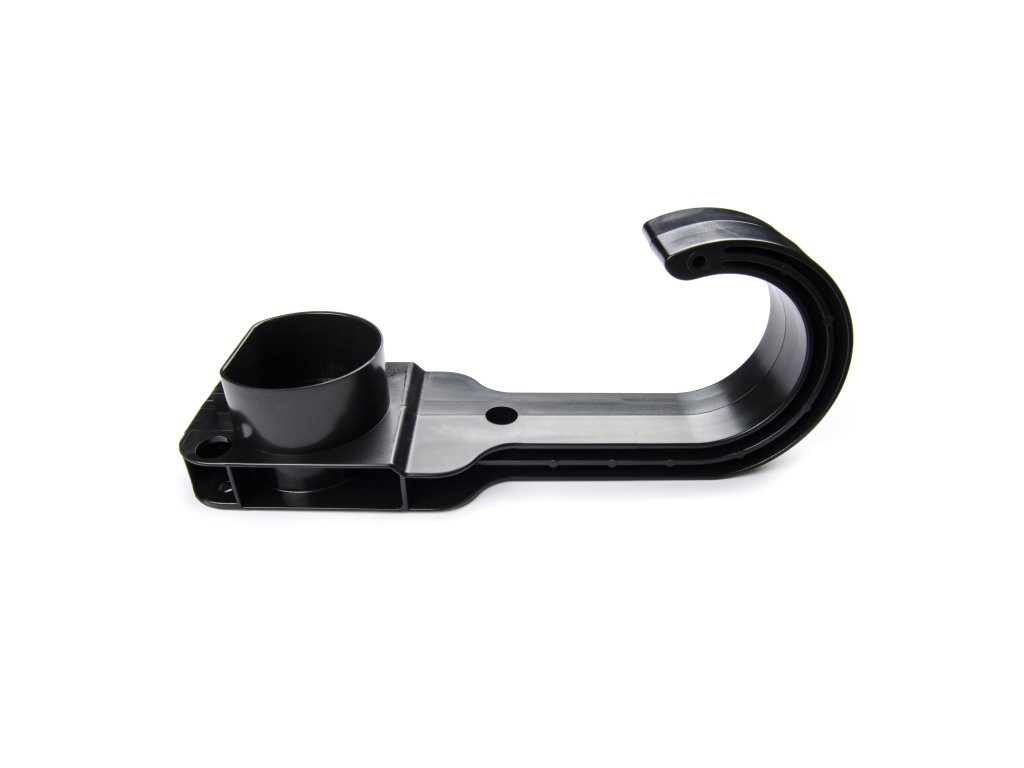

1x Connector holder
2x Cards
1x Manual

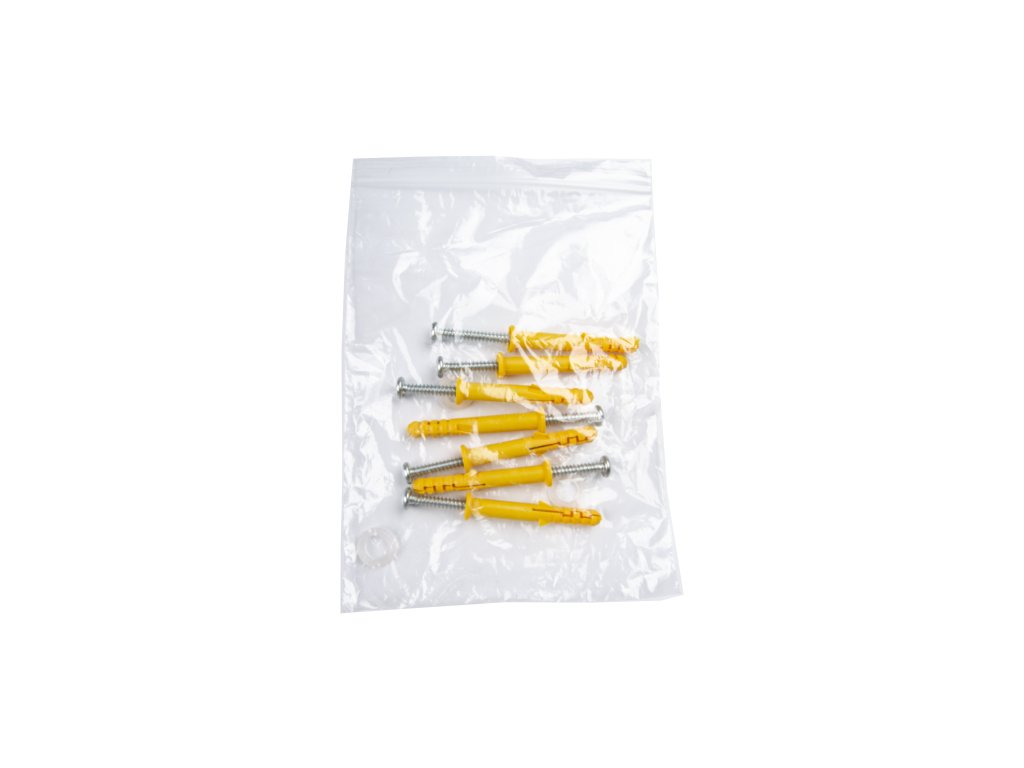

1x Screw set
