Wall Charger for electric cars WBAC 4966 T2 1 cable 11KW 5M RFID APP White, EV charging station Elvix

Product detailed description

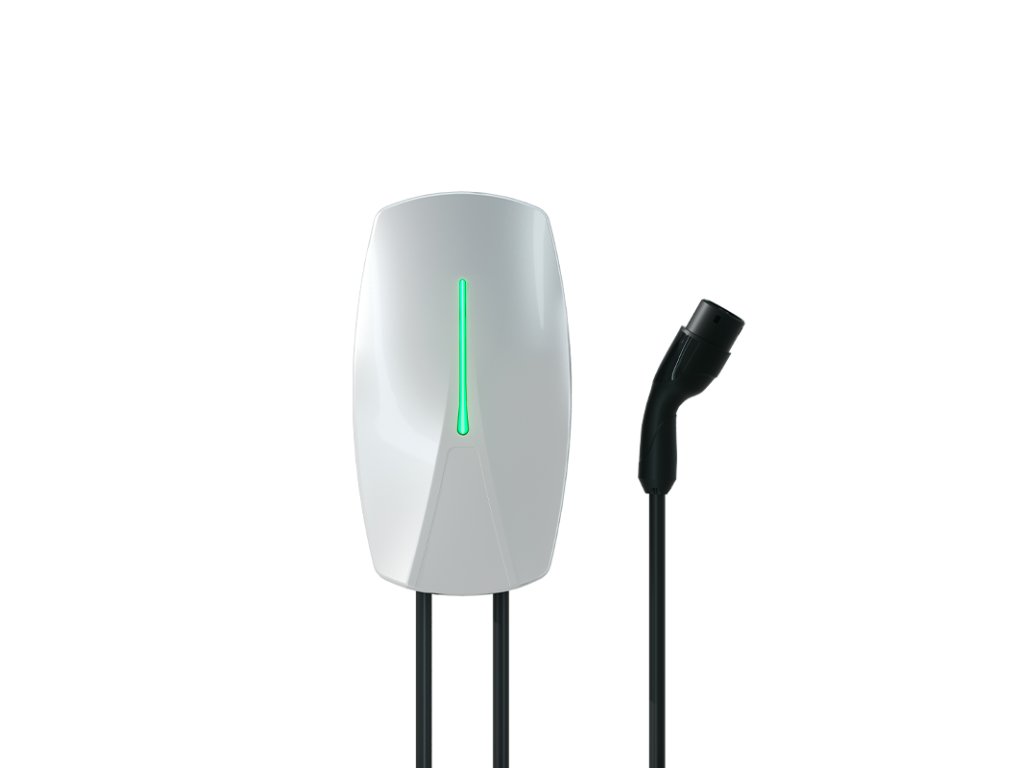

Wall Charger Elvix WBAC 4966 T2 1 cable 11KW 5M RFID APP

The Elvix WBAC 4966 T2 is a versatile wall-mounted AC charger designed for efficient electric vehicle charging, offering a maximum output of 11kW. With a Type 2 connector and a 5-meter cable, it supports a rated current of 32A. The charger includes an RFID reader for secure access and supports the "TUYA" mobile app.

Specifications:

Connector: Type 2
Input Voltage: 3-Phase AC 380V
Rated Current: 32A
Waterproof: IP65
Impact Protection: IK08
Finish: Car paint level with anti-UV coating
Display: Indicator light
Certification: CE, UKCA, IEC, TUV, CB
Cable Length: 5m
Leakage Current Protection: Type B (30mA + DC6mA)
Connectivity: 2 swipe cards + mobile app "TUYA"
Communication Protocol: OCPP 1.6J, Ethernet/Wi-Fi
RS485 Pre-hole Integrated Master Board
Panel Color: White
Size: 31x17x11 cm
Weight: 3.3 kg

Package Includes:
1x Charger
1x Charging Cable
1x Connector holder
1x Fixing bracket
1x Screw set
