Tesla Gen 2 NEMA Adapter TS-3P16-CEE 11KW Red Elvix

Product detailed description

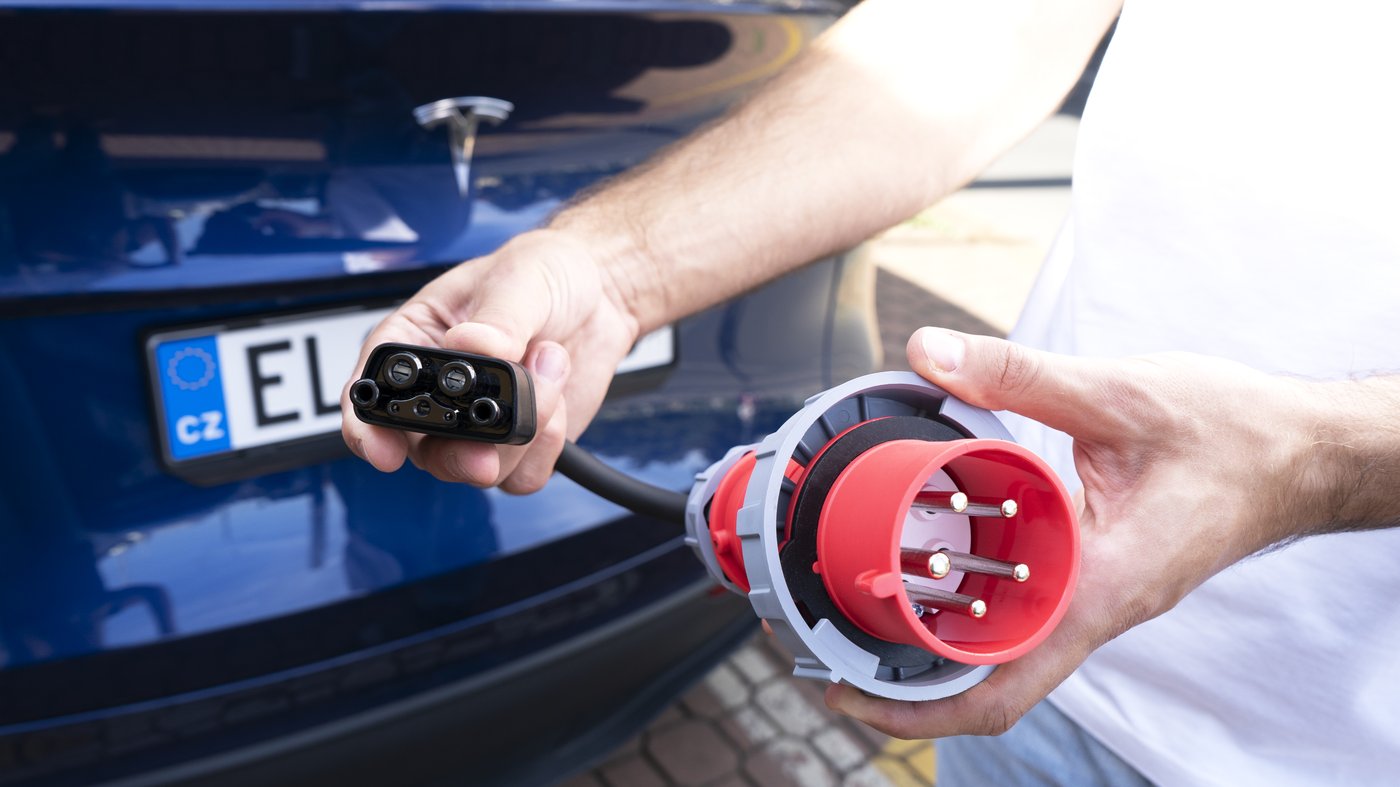

Tesla Gen 2 NEMA Adapter TS-3P16-CEE 11kW (Red)

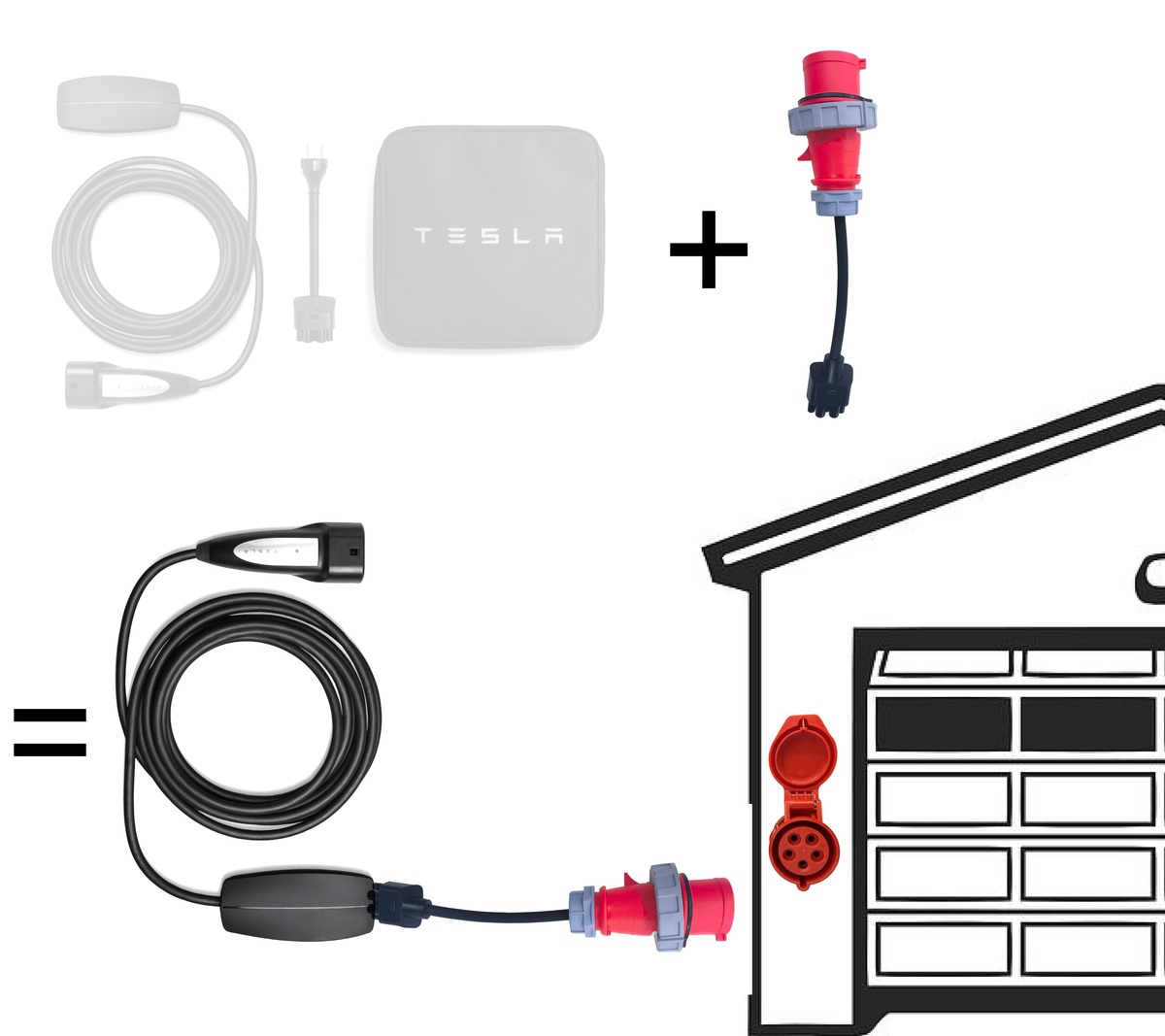

This adapter allows you to connect your Tesla Mobile Connector charger to a three-phase CEE 16A socket (11 kW), which is commonly found in workshops, garages, and commercial buildings across Europe.

Even though the adapter plugs into a three-phase outlet, Tesla vehicles charge using only one phase. The adapter makes it possible to use industrial-grade sockets, but the actual charging power is limited to what a single phase can provide, typically up to 3.7 kW, depending on your car and electrical setup.

Important: The “11 kW” label refers to the socket type, not the actual charging rate for the Tesla.

Compatibility:
- Tesla Gen 2 Mobile Connector
- CEE 16A sockets (3-phase, 5-pin)
- Intended for use in Europe

Specifications:

Plug Type: 3-phase Red 5-pin
Rated Current: 16A
Withstand Voltage: 2500V AC
Plug Life: >10,000 times
Coupled Insertion Force: <70N
Housing: Plastic
Weight: 0.5kg
IP Rating: IP55
Size: 300mm
Operating Temperature: -30 to 50℃

Package Includes:
1x Adapter
