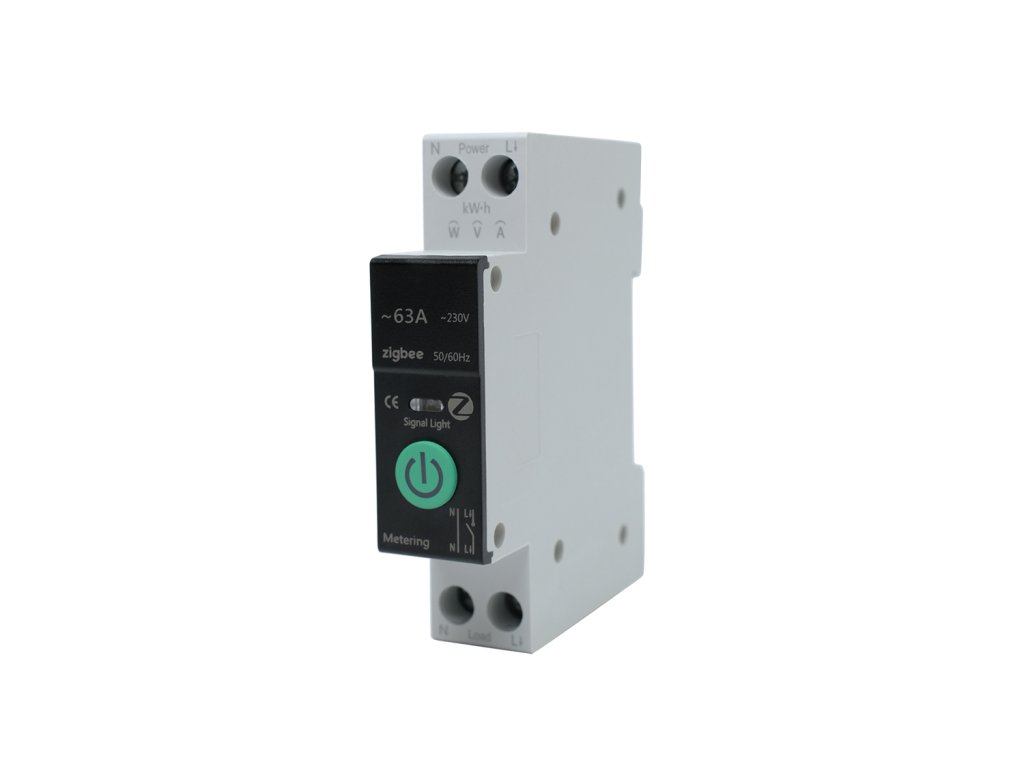

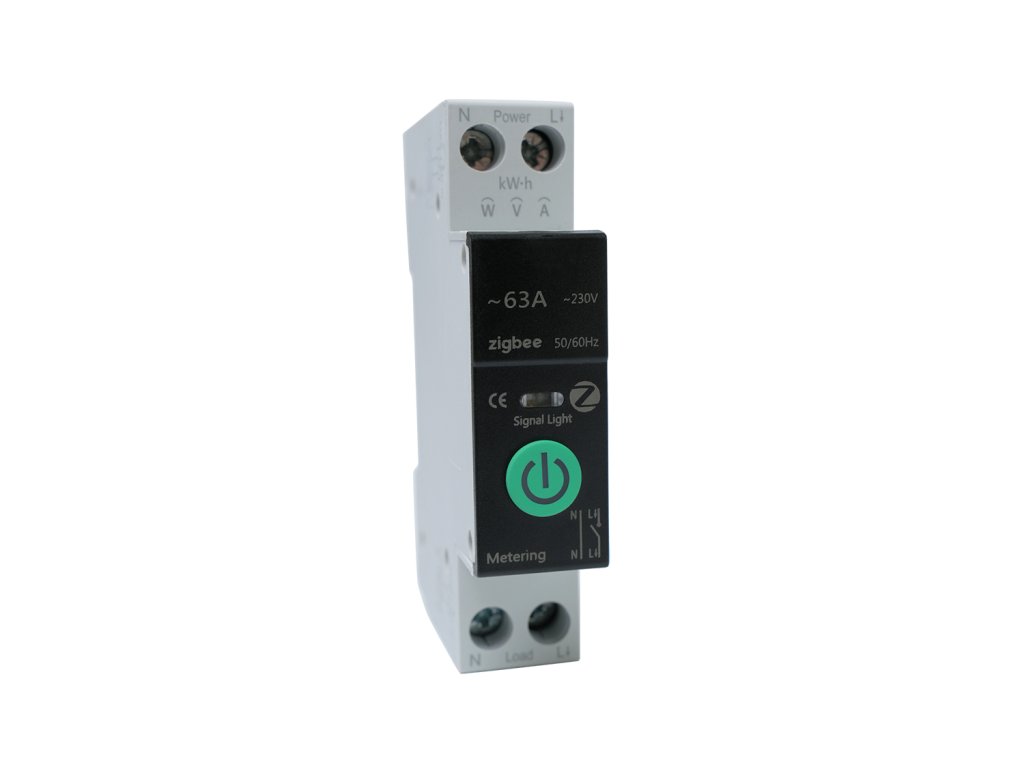

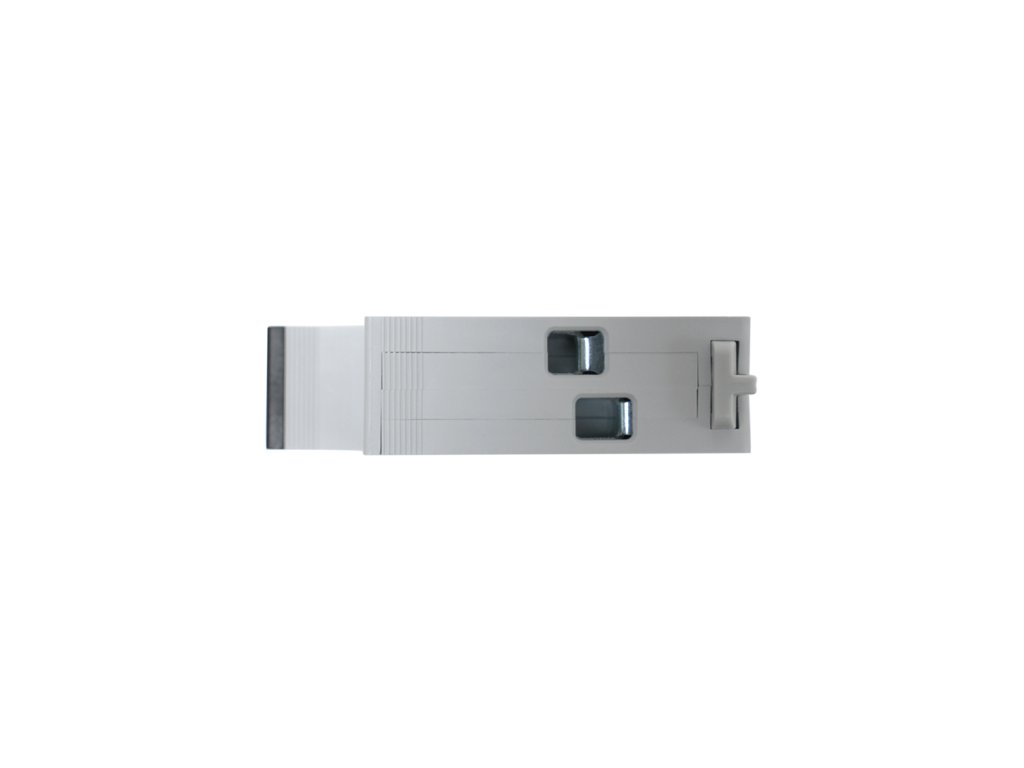

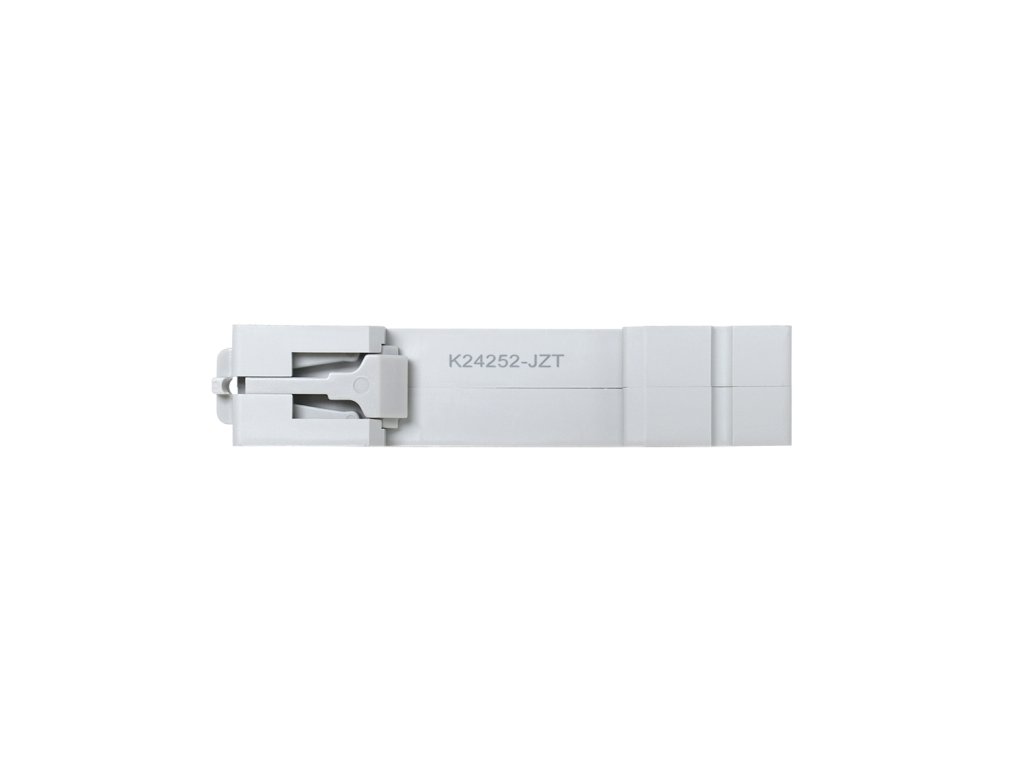

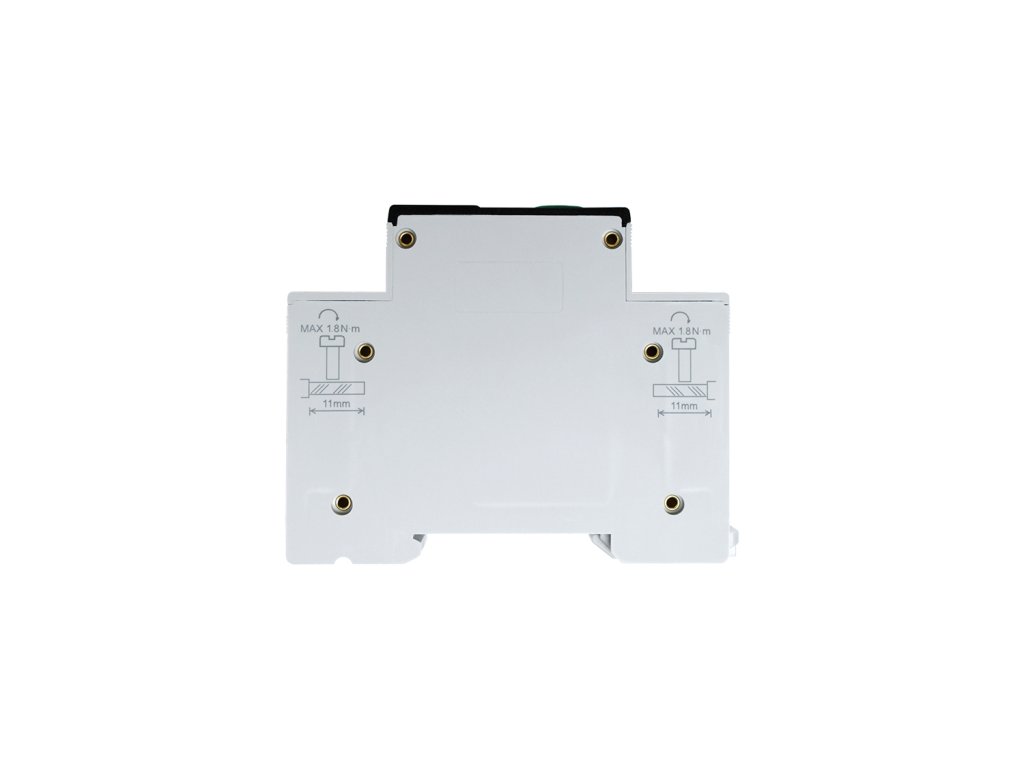

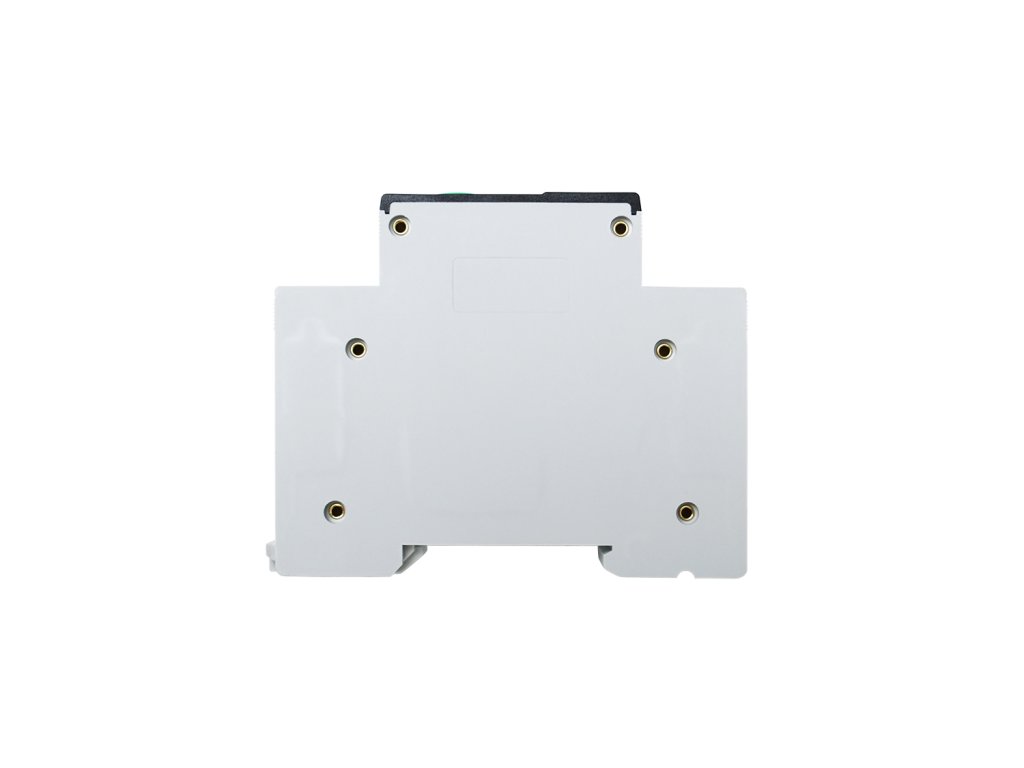

Smart Power Relay MSR220-1 DIN ZB

Product detailed description

Smart Power Relay MSR220-1 DIN ZB

A compact single-channel DIN-mounted smart relay designed for convenient remote control and automation of electrical devices. Works over ZigBee via the MSH-ZB hub, allowing integration into a smart home system.

Features:

- Wireless control via ZigBee protocol (requires MSH-ZB hub)
- Single relay with up to 63A load capacity
- Supports scheduling, sunrise/sunset automation, and scene creation
- Suitable for lighting, irrigation systems, and household appliances
- Remote operation via the Partizan mobile app (iOS, Android)
- Fire-retardant PC V0 housing for safety
- Wide operating temperature range from 0°C to +80°C

Specifications:

Wireless Protocol: ZigBee over HUB MSH-ZB
Number of Relays: 1
Input/Output Voltage: AC 90~250V, 50/60 Hz
Max load: 63A
Dimensions: 68×18×82 mm
Weight: 97 g
Operating temperature: 0°C ~ +80°C
Material: PC V0 fire retardant
Software support: Partizan (iOS, Android)

Download Documentation

Package Includes:
1x Smart Power Relay MSR220-1 DIN ZB
