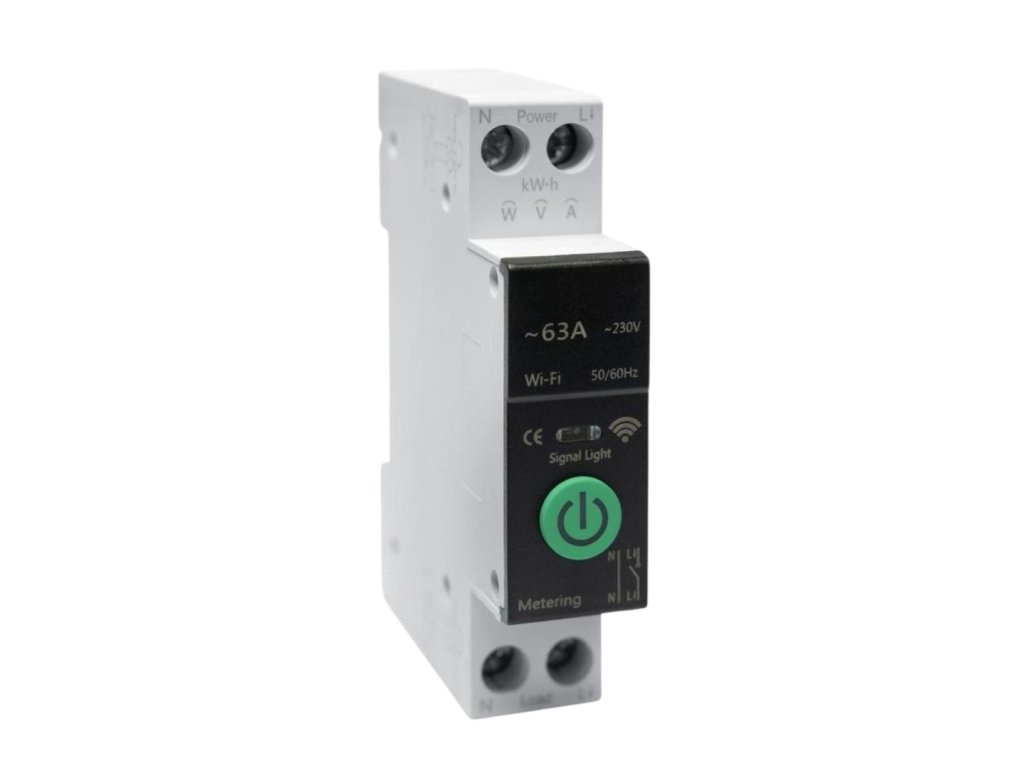

Smart Power Relay MSR220-1 DIN

Product detailed description

Smart Power Relay MSR220-1 DIN

A single-channel DIN-mounted smart relay designed for efficient control and automation of electrical devices. Works via Wi-Fi 2.4GHz, enabling direct connection to your network for integration into a smart home system.

Features:

- Wireless control via Wi-Fi 2.4GHz (802.11 b/g/n)
- Single relay with up to 63A load capacity
- Supports scheduling, sunrise/sunset automation, and scene creation
- Suitable for lighting, irrigation systems, and household appliances
- Remote operation via the Partizan mobile app (iOS, Android)
- Fire-retardant PC V0 housing for safety
- Wide operating temperature range from 0°C to +80°C

Specifications:

Wireless Protocol: Wi-Fi 2.4GHz (802.11 b/g/n)
Number of Relays: 1
Input/Output Voltage: AC 90~250V, 50/60 Hz
Max load: 63A
Dimensions: 68×18×82 mm
Weight: 97 g
Operating temperature: 0°C ~ +80°C
Material: PC V0 fire retardant
Software support: Partizan (iOS, Android)

Download Documentation

Package Includes:
1x Smart Power Relay MSR220-1 DIN
