Portable Charger for electric cars PMAC 4949 T2-2P32 7KW 5M, EV charging station Elvix

Product detailed description

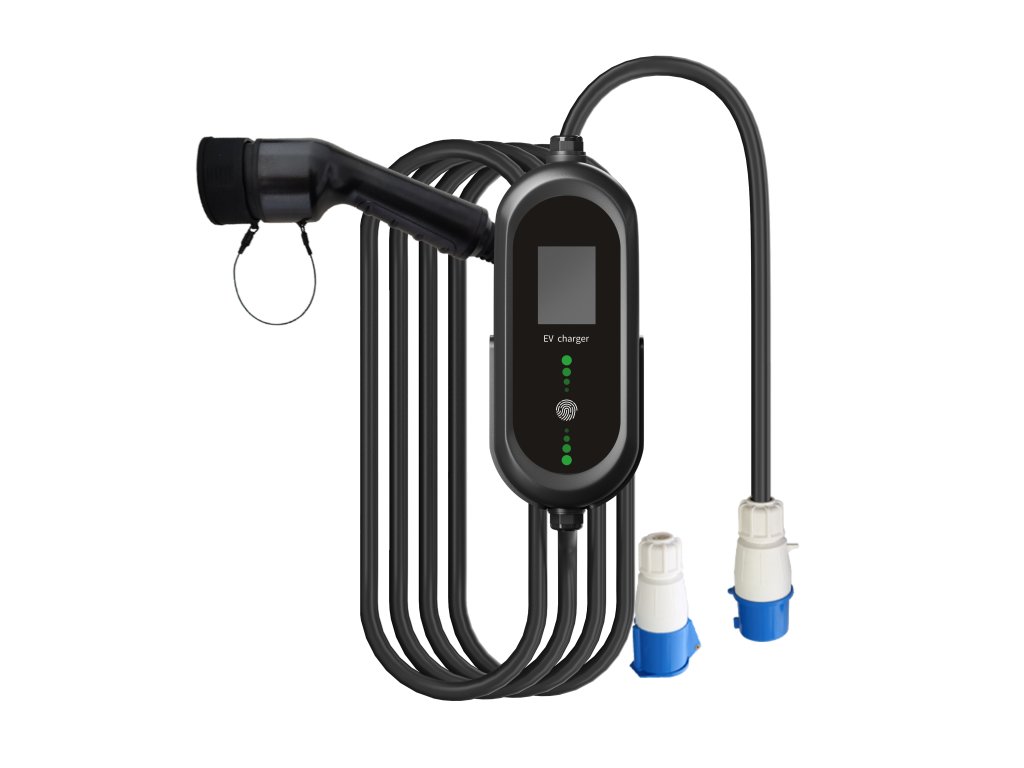

Portable Charger Elvix PMAC 4949 T2-2P32 7KW 5M

The Elvix PMAC 4949 is a versatile and efficient portable EV charger with a power output of 7kW, perfect for home and on-the-go use. Its user-friendly design features plug-and-play functionality, making it easy to set up and use. The charger also offers energy-saving standby power consumption of less than 3W. Equipped with a display screen and three light indicators, it provides clear real-time charging information. Adjustable current settings (8A-32A) and scheduling options enhance convenience.

Specifications:

Power Plug: 32A Industrial plug
Net Weight: 3.4 kg
Cable Size: 3*6 mm² + 0.75 mm²
Model: Plug & Play / Booktime / Current Regulation
Enclosure: Charging gun-Control box PC9330
Size: Charging Gun 240 × 98 × 70 mm / Control Box 245 × 105 × 76 mm (H × W × D)
Power Direction: Input (Up) & Output (Down)
Cable Length: 5 m
Input Voltage: AC 230V
Input Frequency: 50Hz / 60Hz
Maximum Power: 7 kW
Output Voltage: AC 230V
Output Current: 8A-10A-13A-16A-32A
Standby Power: 3W
Applicable Scene: Indoor or Outdoor
Work Humidity: 5% - 95% (Non-condensing)
Work Temperature: -30℃ to +50℃
Work Altitude: <2000 m
Protection Class: Charging Gun IP67 / Control Box IP67
Cooling Method: Natural Cooling
Standard: IEC62196-2
Flammability Rating: UL94 V0
Certificate: TUV, CE, ROHS, CB
Interface: 3.2-inch Display Screen
Safety Design: Over Current Protection, Residual Current Protection, Ground Protection, Surge Protection, Over/Under Voltage, Frequency, Temperature Protection
Color: Black

Package Includes:
1x Charger
1x Cable with connector
1x Manual
1x Screw set
1x Charger bag
