Product detailed description

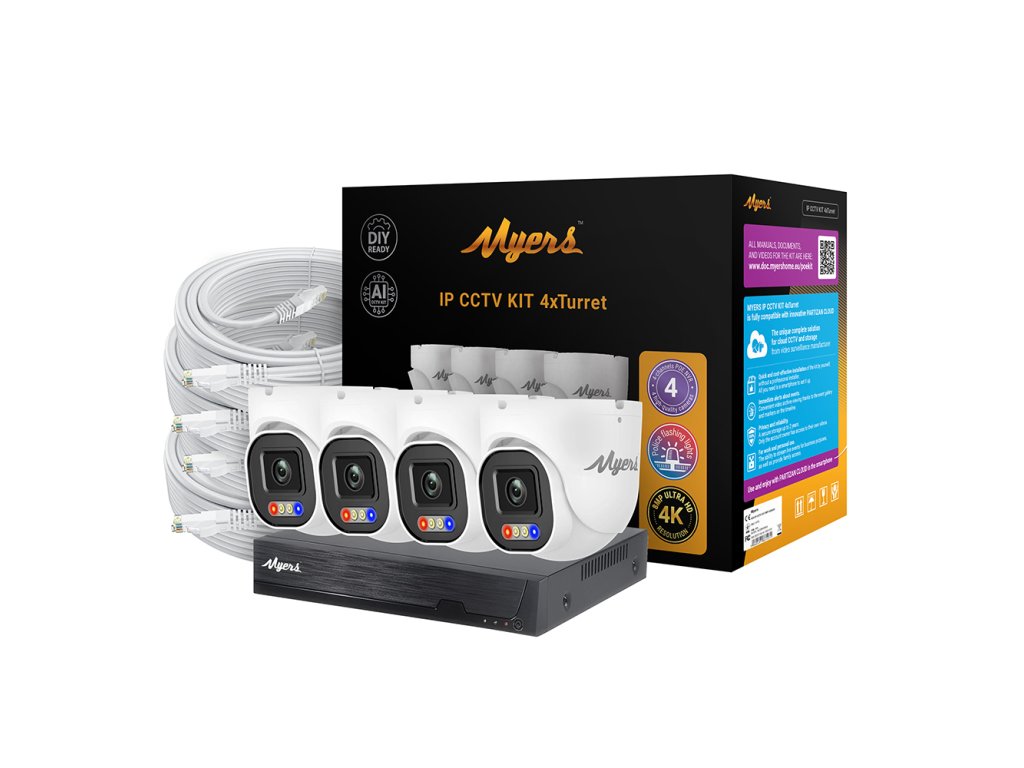

Myers 4CH IP KIT 8MP 4xTurret FADA is a Cloud series CCTV surveillance kit featuring a 4-channel IP NVR bundled with four 8MP turret cameras. This complete system supports up to 16 cameras and delivers recording at 16 channels in 8MP resolution at 25 fps using H.265+ and H.265 video codecs.
The NVR provides four 10/100 PoE ports for camera connectivity and offers smart analytics including human detection, line crossing detection, intrusion detection, and face detection. Cloud capabilities include remote access, cloud recording, and PUSH notifications accessible via the Partizan mobile app or Myers desktop applications. The system supports display resolutions up to 2560x1440 with video splitter modes of 1, 4, 9, 16, 2, and 6 views. The included turret cameras feature 1/2.7" CMOS sensors with 3840x2160 main stream at 10 fps, 2.8mm focal length providing 88° horizontal and 58° vertical viewing angles, and IR/White LED illumination up to 25 meters with IP67 protection.
The desktop NVR measures 255x215x43mm with metal housing, supports one internal HDD up to 14TB, operates at -40 to 60°C, and includes a 52V DC power supply. The kit comes with optical mouse, power adapter, four Ethernet cables, and carries a 3-year warranty.
Product details
| Model |
4CH IP KIT
|
| Version |
8MP 4xTurret FADA
|
| SKU |
5776
|
| Series |
Cloud series
|

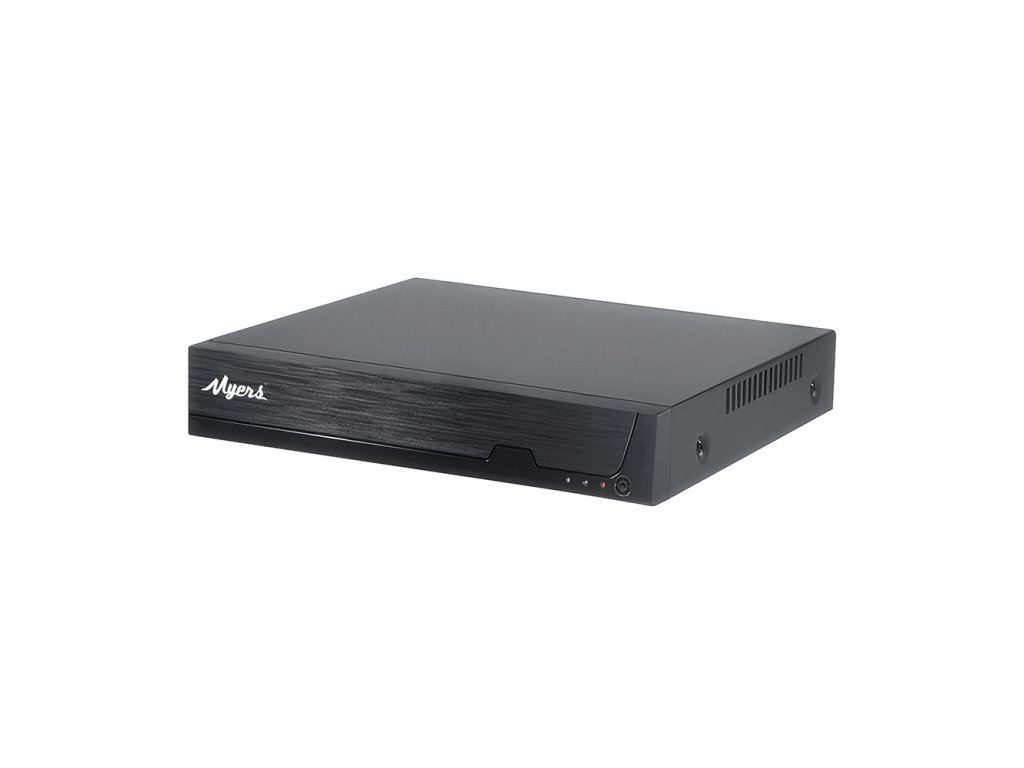

NVR
Encoder
| Maximum cameras |
16 pcs
|
| Recording modes (IP) |
16x8MP@25 fps
|
| Video codec |
H.265+,
H.265
|
Graphical user interface
| Display resolution |
2560x1440, 1920x1080, 1440x900, 1280x1024, 1024x768
|
| Video splitter modes |
1,
4,
9,
16,
2,
6
|
| Languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
Storage
| Internal HDD |
1 x 14 TB
|
| HDD storage (important note) |
For reliable 24/7 operation, it is strongly recommended to use HDDs specifically designed for video surveillance systems. Hard disk drive is not included in the package.
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Ethernet PoE ports |
4 x 10/100 M
|
| Network functions |
TCP/IP,
ICMP,
HTTP,
HTTPS,
FTP,
DHCP,
DNS,
DDNS,
RTP/RTSP,
NTP,
SMTP,
RTCP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Line crossing detection,
Intrusion detection,
Face detection
|
| Smart analytics (important note) |
Smart alarms can only be used with Cloud-series IP cameras
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
External interfaces
| Video output |
VGA,
HDMI
|
| Audio inputs |
1
|
| Audio outputs |
1
|
| USB ports |
2 x USB 2.0
|
Mechanical specifications
| Form factor |
Desktop
|
| Front panel material |
Plastic
|
| Housing material |
Metal
|
| Dimension |
255 x 215 x 43 mm
|
| Weight |
750 g
|
Power
| DC power source |
52 V
|
| DC consumtion |
2300 mA
|
| DC power supply |
Included
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Optical mouse,
Power adapter,

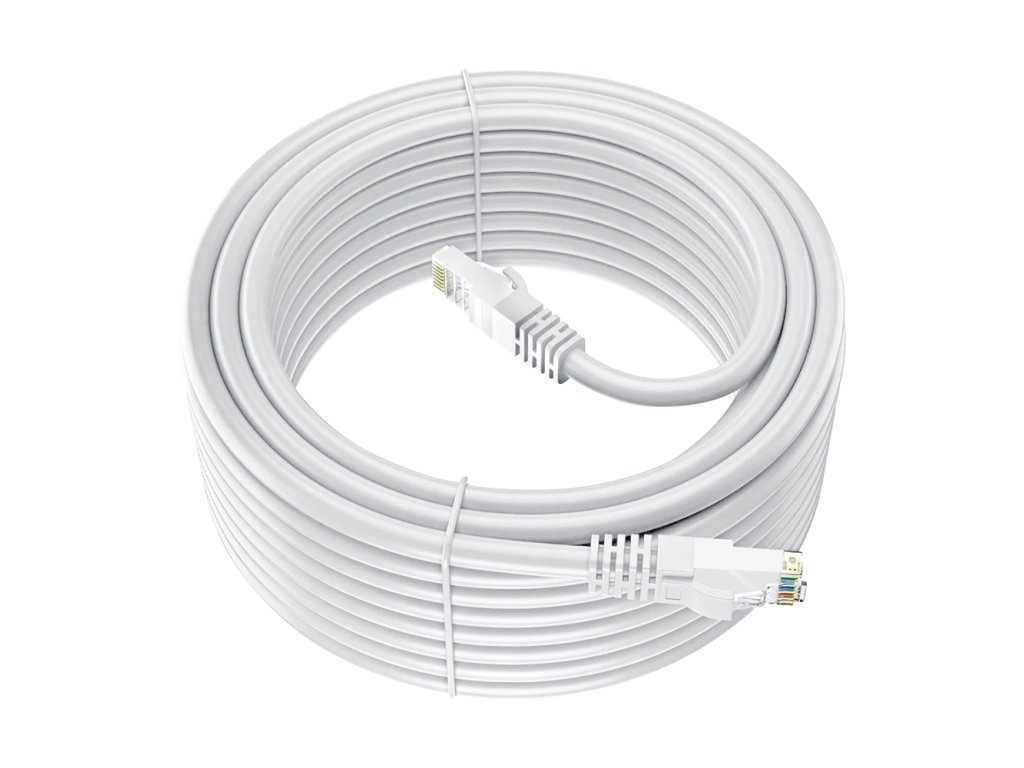

4 x Ethernet cable
|
| Warranty |
3 years
|

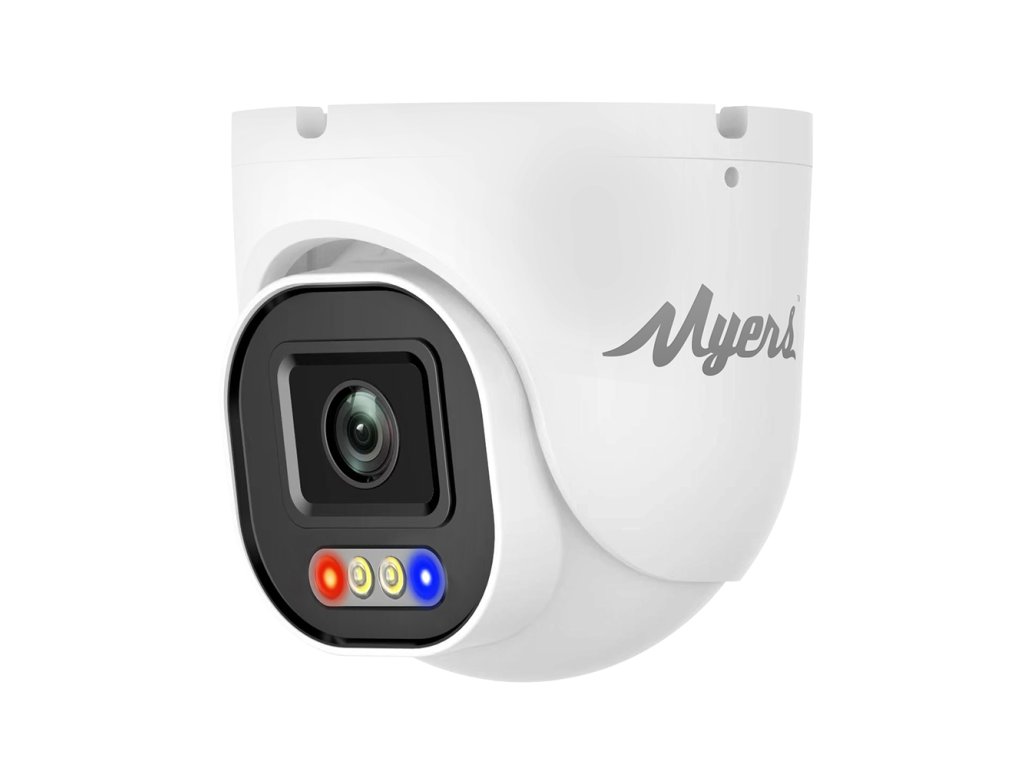

IP Camera
Encoder
| Main stream |
3840x2160@10 fps
|
| Sub stream |
800x448@25 fps
|
| Video codec |
H.264,
H.265
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2.8x2.8 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
≤48 m
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/25 - 1/10000 s
|
| Video functions |
AES,
AES,
AGC,
BLC,
OSD,
Privacy mask,
AWB
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.6
|
| Focal length |
2.8 mm
|
| Horizontal view |
88°
|
| Vertical view |
58°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤25 m
|
| Number of LEDs |
4 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
DDNS,
IP FILTER
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech,
Ukranian
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
Ø93 x 90 mm
|
| Weight |
340 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
1000 mA
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-20 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
Common
| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
