Product detailed description

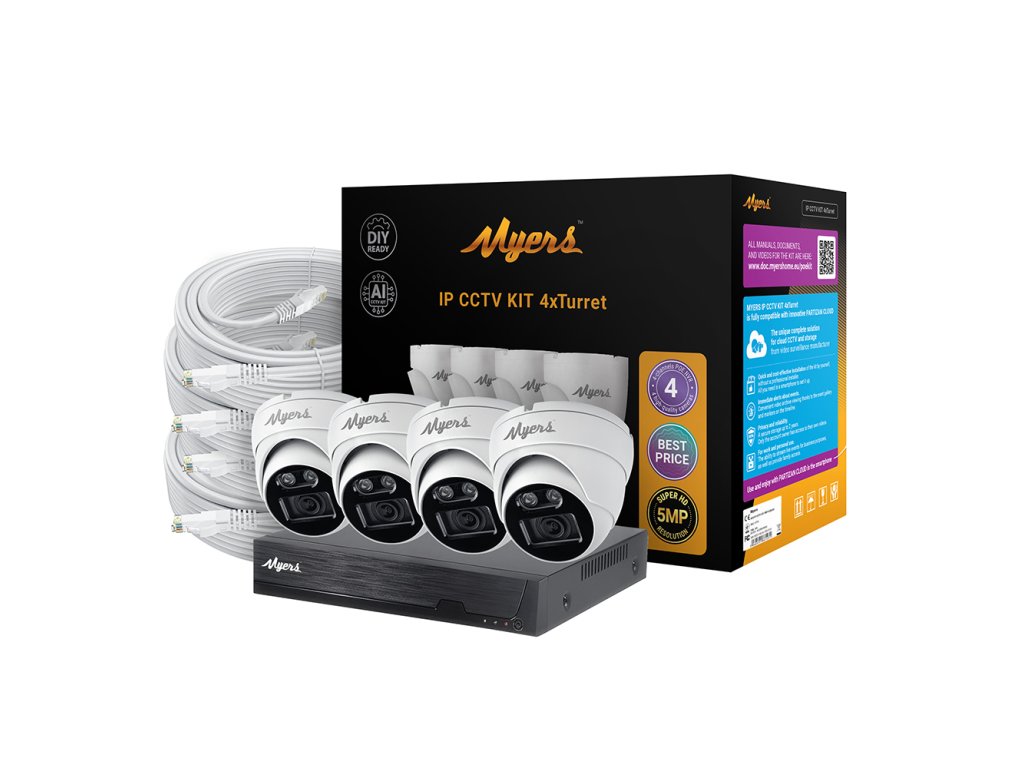

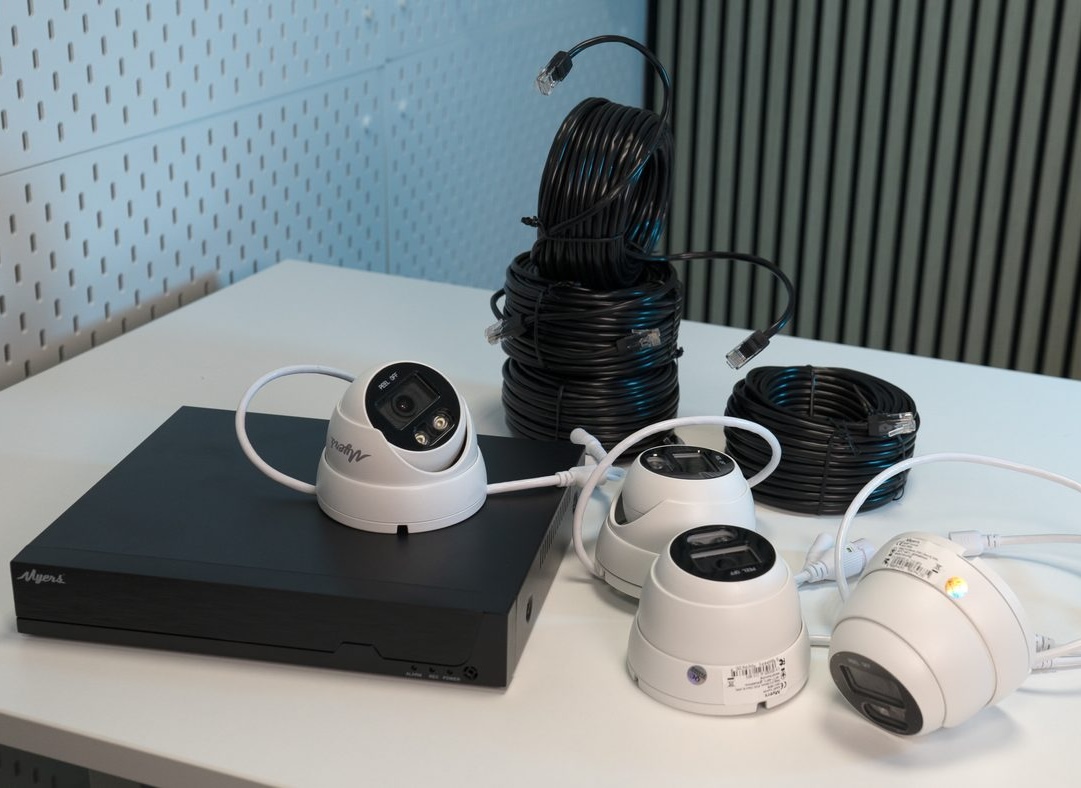

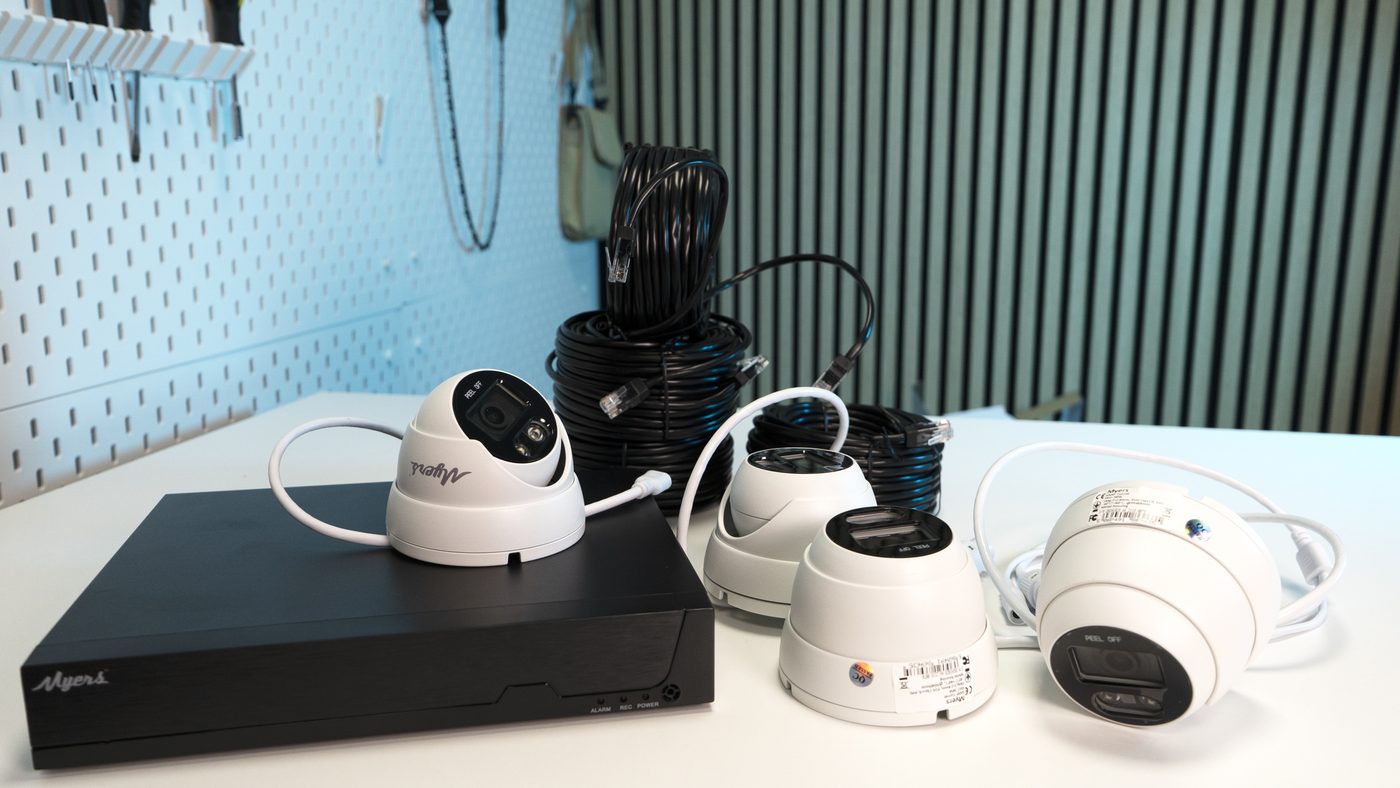

Myers 4CH IP KIT 5MP 4xTurret is a Cloud series CCTV surveillance kit from Myers comprising a 4-channel IP network video recorder and four 5MP turret cameras. The system supports up to 10 cameras with H.265 and H.265+ video compression.
The NVR features 4 PoE ports (10/100) for simplified camera connectivity and supports internal HDD storage up to 14TB. Smart analytics include human detection, line crossing detection, and intrusion detection. Cloud capabilities provide remote access, cloud recording, and PUSH notifications via the Partizan mobile app or Myers desktop applications. The system offers VGA and HDMI video outputs with display resolutions up to 2560x1440, supports multiple video splitter modes (1, 2, 4, 6, 9, 10), and includes 1 audio input and 1 audio output. The included turret cameras feature a 1/2.7" CMOS sensor with 2.8mm focal length, 88° horizontal and 58° vertical viewing angles, IR and white LED illumination up to 25m, and IP67-rated metal housing.
The NVR operates on 52V DC power (adapter included) with the desktop metal housing measuring 255x215x43mm. Cameras support PoE Class 0 or 12V DC power. Operating temperature ranges from -40 to 60°C for the NVR and -20 to 40°C for cameras. Both components carry a 3-year warranty.
Product details
| Model |
4CH IP KIT
|
| Version |
5MP 4xTurret
|
| SKU |
5772
|
| Series |
Cloud series
|
NVR
Encoder
| Maximum cameras |
10 pcs
|
| Recording modes (IP) |
10x8MP@25 fps
|
| Video codec |
H.265,
H.265+
|
Graphical user interface
| Display resolution |
2560x1440, 1920x1080, 1440x900, 1280x1024, 1024x768
|
| Video splitter modes |
1,
2,
6,
9,
10,
4
|
| Languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
Storage
| Internal HDD |
1 x 14 TB
|
| HDD storage (important note) |
For reliable 24/7 operation, it is strongly recommended to use HDDs specifically designed for video surveillance systems. Hard disk drive is not included in the package.
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|

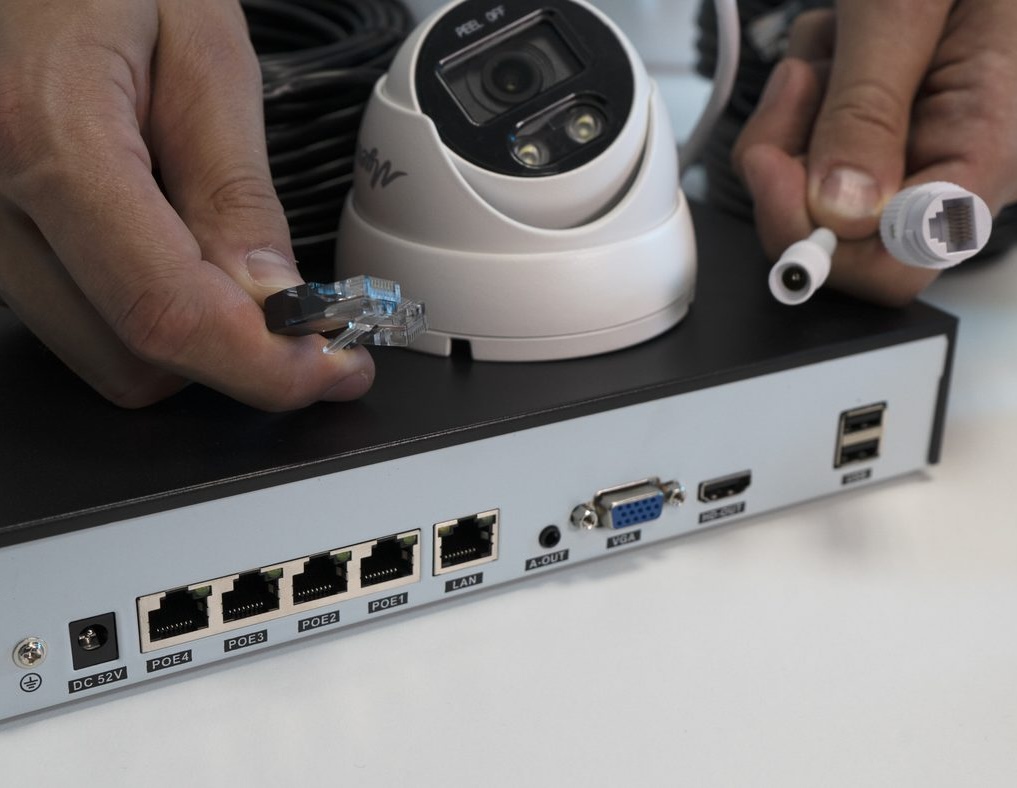

| Ethernet PoE ports |
4 x 10/100 M
|
| Network functions |
TCP/IP,
ICMP,
HTTP,
HTTPS,
FTP,
DHCP,
DNS,
DDNS,
RTP/RTSP,
NTP,
SMTP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Line crossing detection,
Intrusion detection
|
| Smart analytics (important note) |
Smart alarms can only be used with Cloud-series IP cameras
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Mozilla Firefox,
Edge,
Google Chrome
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
External interfaces
| Video output |
VGA,
HDMI
|
| Audio inputs |
1
|
| Audio outputs |
1
|
| USB ports |
2 x USB 2.0
|

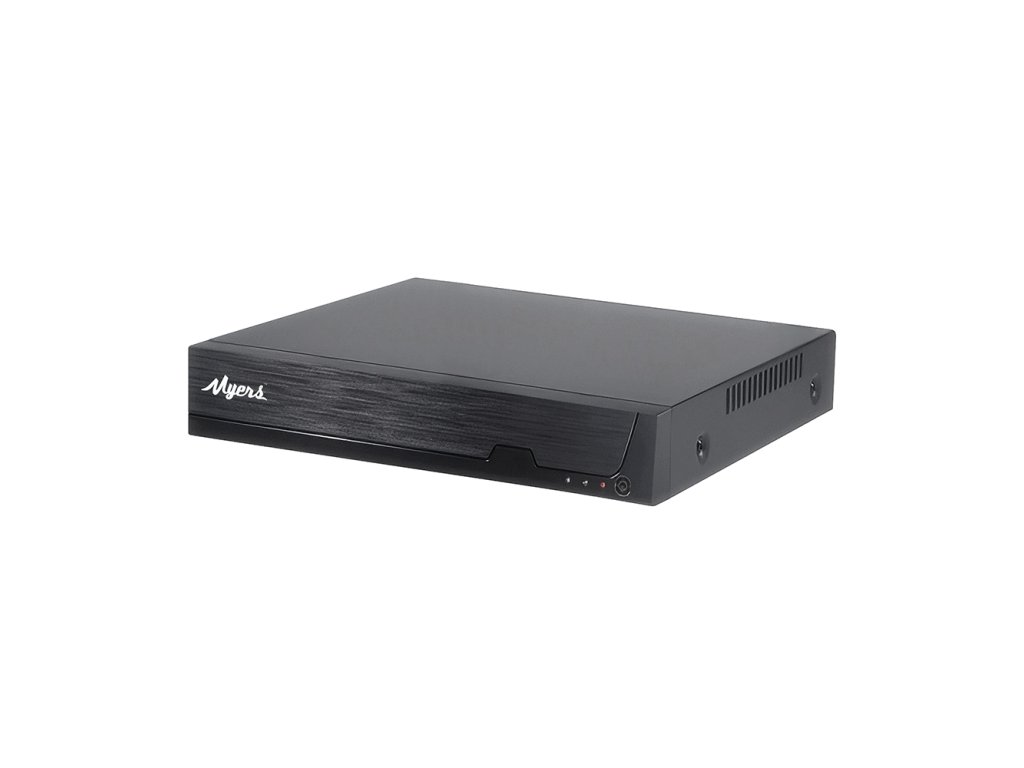

Mechanical specifications
| Form factor |
Desktop
|
| Front panel material |
Plastic
|
| Housing material |
Metal
|
| Dimension |
255 x 215 x 43 mm
|
| Weight |
750 g
|
Power
| DC power source |
52 V
|
| DC consumtion |
2300 mA
|
| DC power supply |
Included
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Power adapter,
Optical mouse,

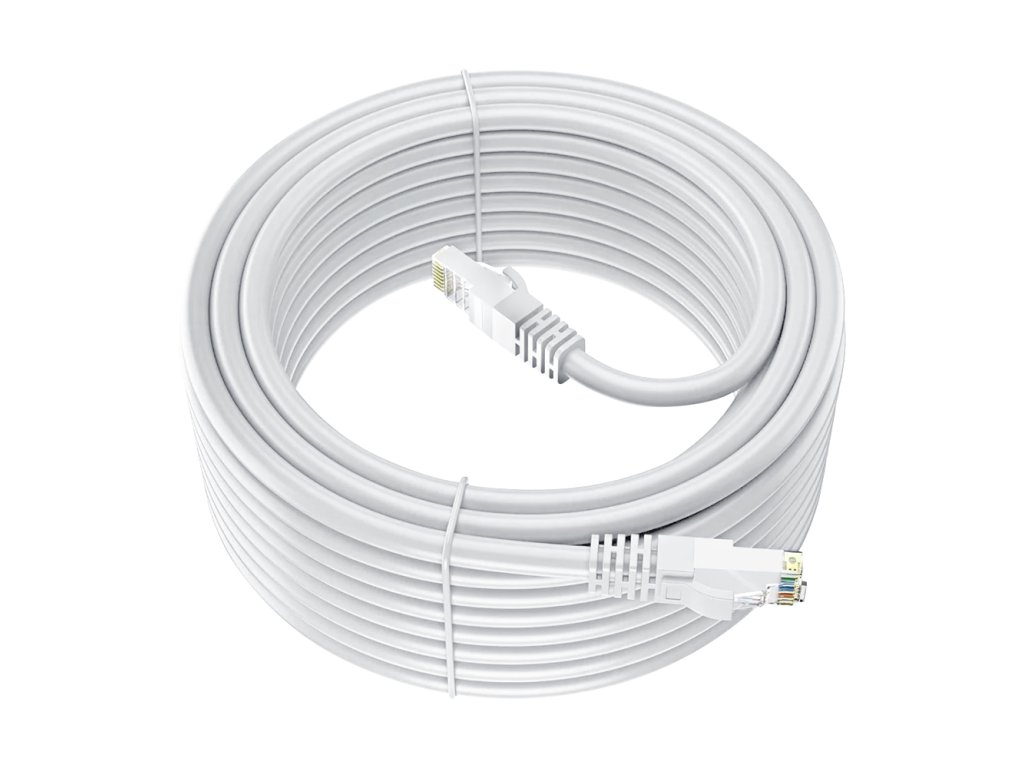

4 x Ethernet cable
|
| Warranty |
3 years
|
IP Camera
Encoder
| Main stream |
3840x2160@10 fps
|
| Sub stream |
800x448@25 fps
|
| Video codec |
H.264,
H.265
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2.8x2.8 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
≤48 m
|
| Exposure modes |
Manual,
Auto
|
| Exposure range |
1/25 - 1/10000 s
|
| Video functions |
AEC,
AGC,
AWB,
BLC,
OSD,
Privacy mask
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.6
|
| Focal length |
2.8 mm
|
| Horizontal view |
88°
|
| Vertical view |
58°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤25 m
|
| Number of LEDs |
2 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
IP FILTER,
DDNS
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
PUSH notifications,
Cloud recording
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
Ø94 x 69 mm
|
| Weight |
250 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
1000 mA
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-20 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
Common
| Package contents |
Mounting kit,
Drill template
|
| Warranty |
3 years
|
