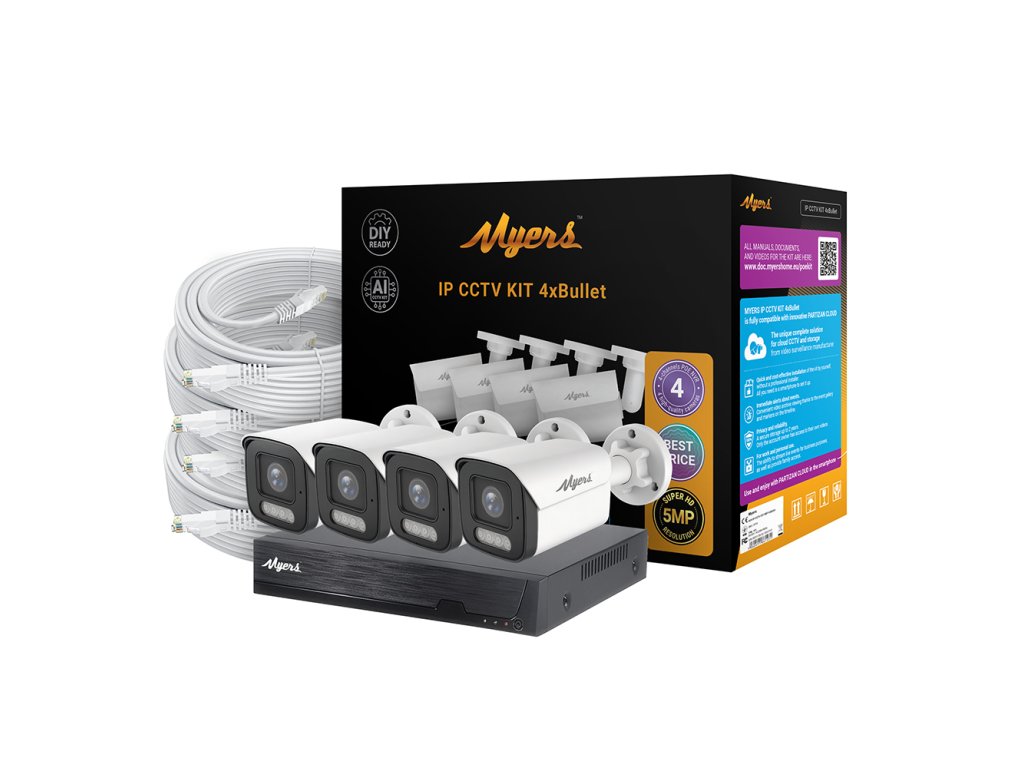

Myers 4CH IP KIT 5MP 4xBullet is a CCTV surveillance kit from the Myers Cloud series, comprising a 4-channel network video recorder and four 5MP bullet IP cameras. The system supports up to 10 cameras with H.265 and H.265+ video compression and features four 10/100 Ethernet PoE ports for camera connectivity.
The NVR offers smart analytics including human detection, line crossing detection, and intrusion detection. Video output is available via VGA and HDMI with display resolutions up to 2560x1440, and the system supports video splitter modes of 1, 2, 6, 9, and 10 views. Cloud capabilities include remote access, cloud recording, and PUSH notifications, with management through Myers desktop apps, Partizan mobile app, or web browsers including Google Chrome, Mozilla Firefox, and Edge. The recorder accommodates 1 internal HDD up to 14TB and supports multiple network protocols including TCP/IP, HTTP, HTTPS, RTSP, and DDNS.

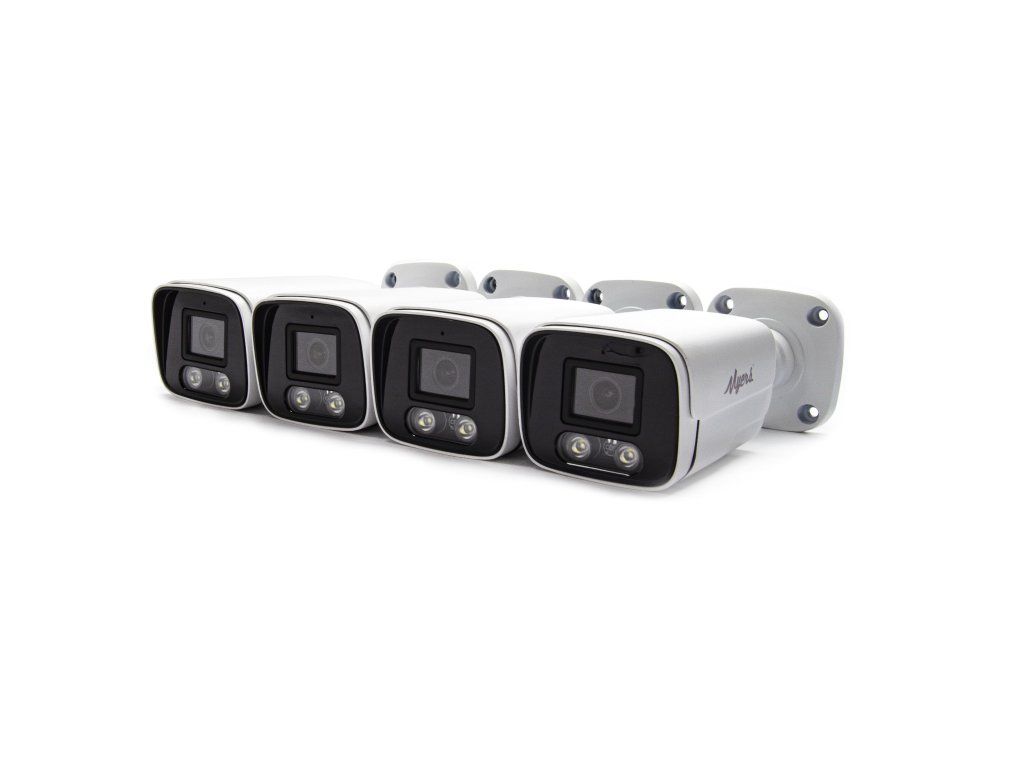

The included bullet cameras feature a 1/2.7" CMOS sensor with 2.8mm focal length lens providing 88° horizontal and 58° vertical viewing angles. Cameras are rated IP67 with metal housing, operate from -20 to 40°C, and support PoE Class 0 power. The NVR operates from -40 to 60°C, measures 255x215x43mm with metal housing, and comes with a 3-year warranty.
Product details
| Model |
Myers 4CH IP KIT
|
| Version |
5MP 4xBullet
|
| SKU |
5774
|
| Series |
Cloud series
|

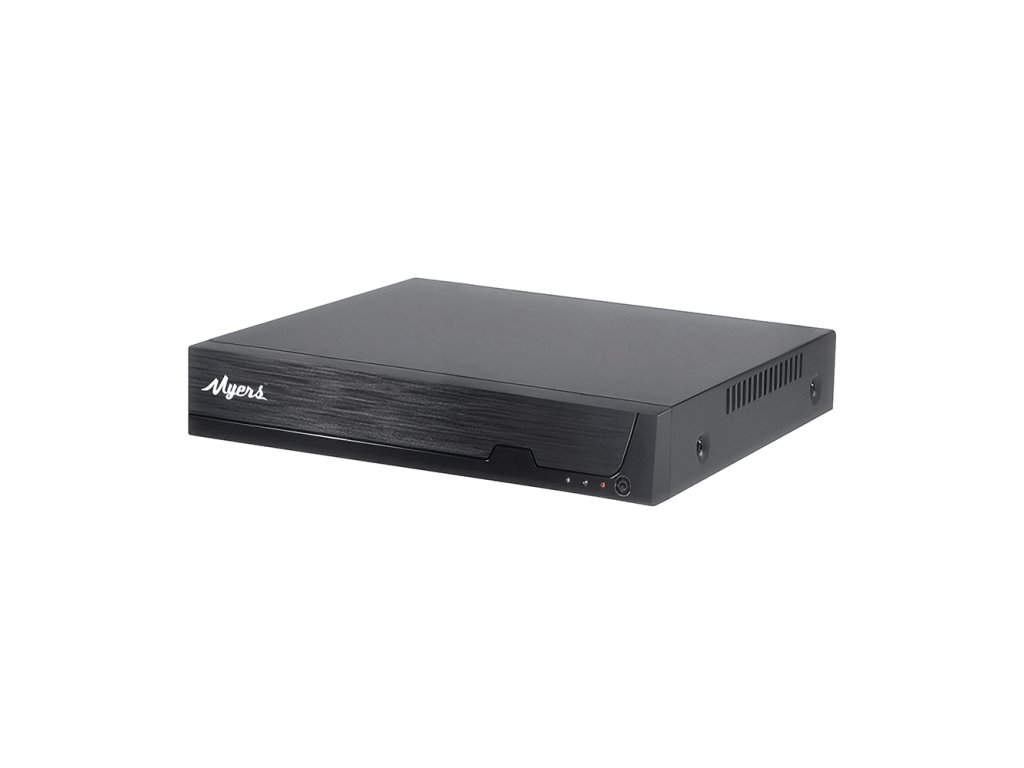

NVR
Encoder
| Maximum cameras |
10 pcs
|
| Recording modes (IP) |
10x8MP@25 fps
|
| Video codec |
H.265,
H.265+
|
Graphical user interface
| Display resolution |
2560x1440, 1920x1080, 1440x900, 1280x1024, 1024x768
|
| Video splitter modes |
1,
2,
6,
9,
10
|
| Languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
Storage
| Internal HDD |
1 x 14 TB
|
| HDD storage (important note) |
For reliable 24/7 operation, it is strongly recommended to use HDDs specifically designed for video surveillance systems. Hard disk drive is not included in the package.
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Ethernet PoE ports |
4 x 10/100 M
|
| Network functions |
TCP/IP,
ICMP,
HTTP,
HTTPS,
FTP,
DHCP,
DNS,
DDNS,
RTP/RTSP,
NTP,
SMTP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Line crossing detection,
Intrusion detection
|
| Smart analytics (important note) |
Smart alarms can only be used with Cloud-series IP cameras
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Mozilla Firefox,
Edge,
Google Chrome
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
External interfaces
| Video output |
VGA,
HDMI
|
| Audio inputs |
1
|
| Audio outputs |
1
|
| USB ports |
2 x USB 2.0
|
Mechanical specifications
| Form factor |
Desktop
|
| Front panel material |
Plastic
|
| Housing material |
Metal
|
| Dimension |
255 x 215 x 43 mm
|
| Weight |
750 g
|
Power
| DC power source |
52 V
|
| DC consumtion |
2300 mA
|
| DC power supply |
Included
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Power adapter,
Optical mouse,

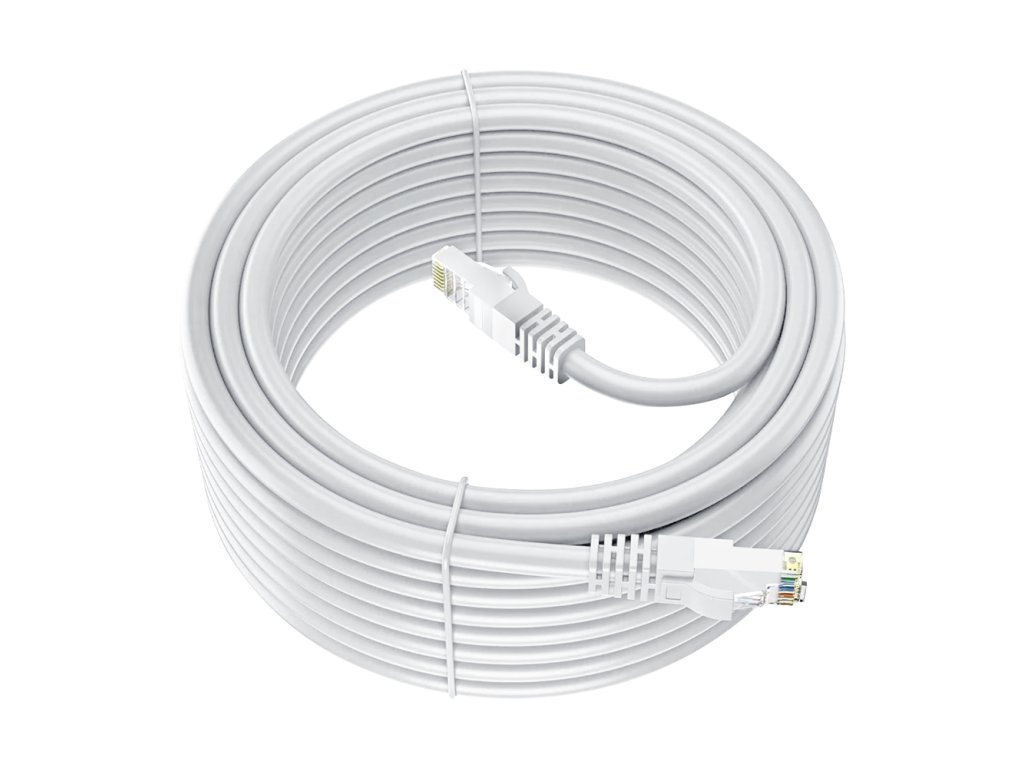

4 x Ethernet cable
|
| Warranty |
3 years
|

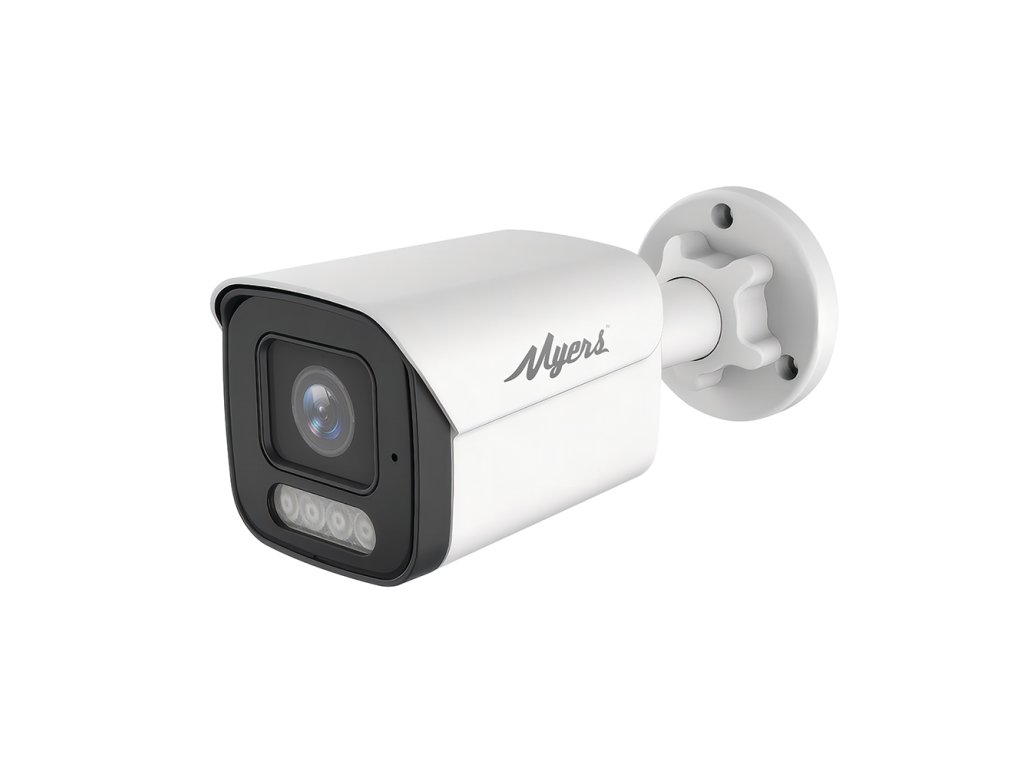

IP Camera
Encoder
| Main stream |
3840x2160@10 fps
|
| Sub stream |
800x448@25 fps
|
| Video codec |
H.264,
H.265
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2.8x2.8 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
≤48 m
|
| Exposure modes |
Manual,
Auto
|
| Exposure range |
1/25 - 1/10000 s
|
| Video functions |
AEC,
AGC,
AWB,
BLC,
OSD,
Privacy mask
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.6
|
| Focal length |
2.8 mm
|
| Horizontal view |
88°
|
| Vertical view |
58°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤25 m
|
| Number of LEDs |
4 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
DDNS,
IP FILTER,
Email,
NTP,
UPnP,
RTP/RTSP,
SMTP,
HTTP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
PUSH notifications,
Cloud recording
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
173 x 72 x 71 mm
|
| Weight |
370 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
1000 mA
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-20 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
Common
| Package contents |
Mounting kit,
Drill template
|
| Warranty |
3 years
|
