Wall Charger for electric cars Pingalax J4-7kW, EV charging station

Product detailed description

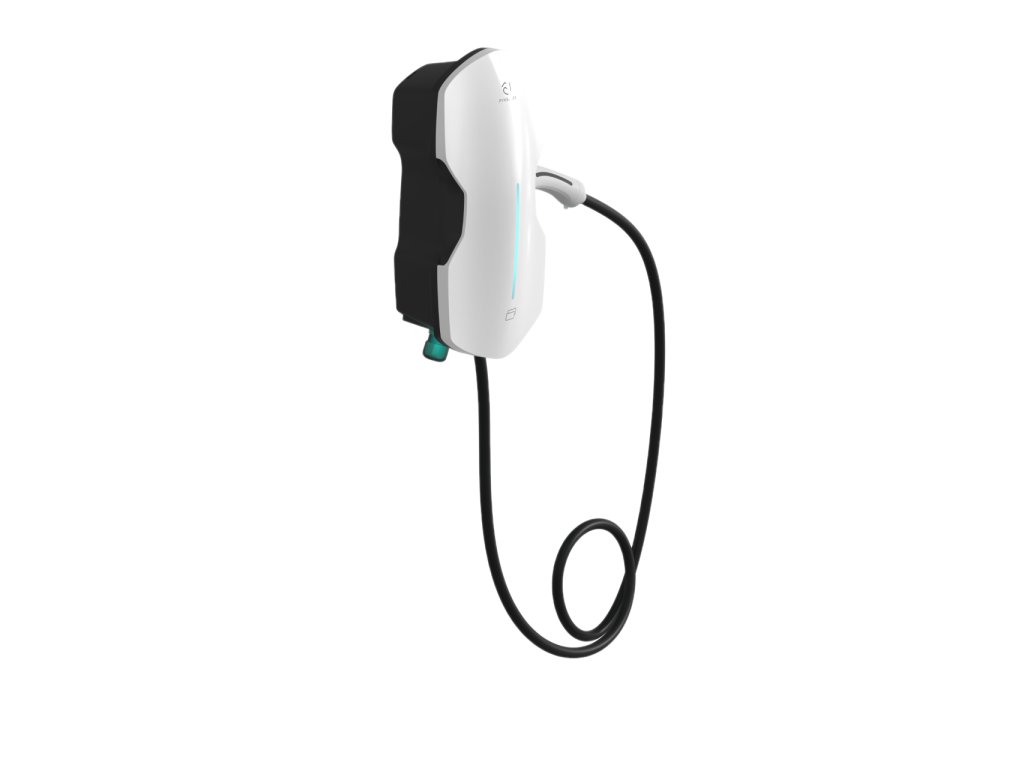

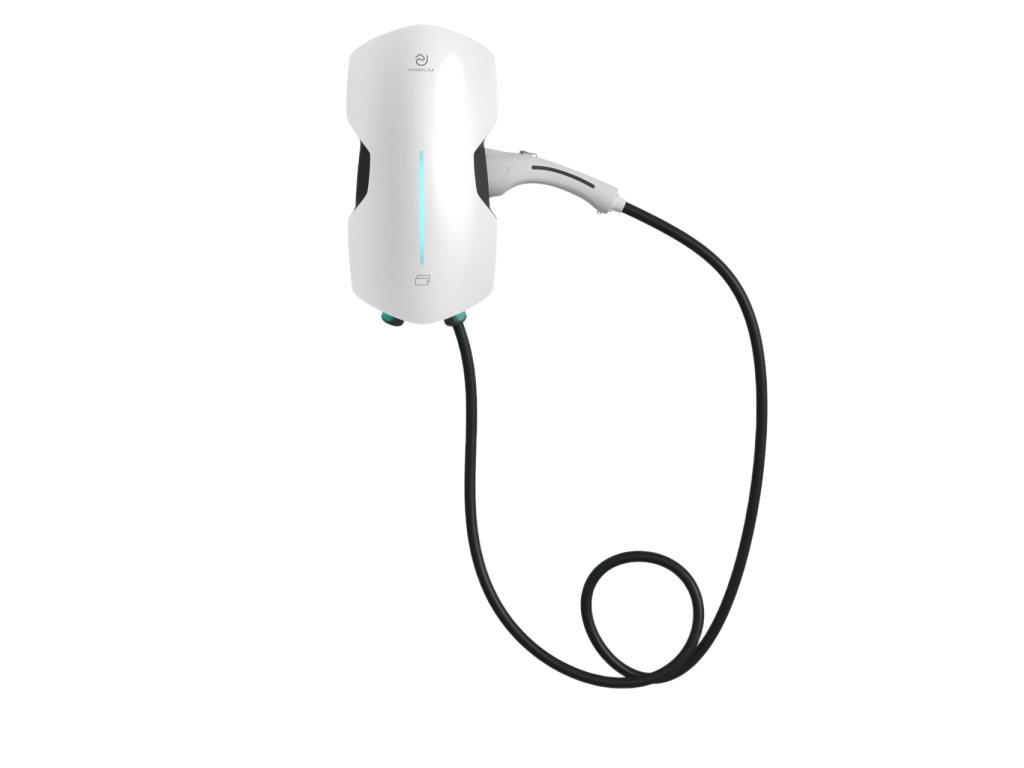

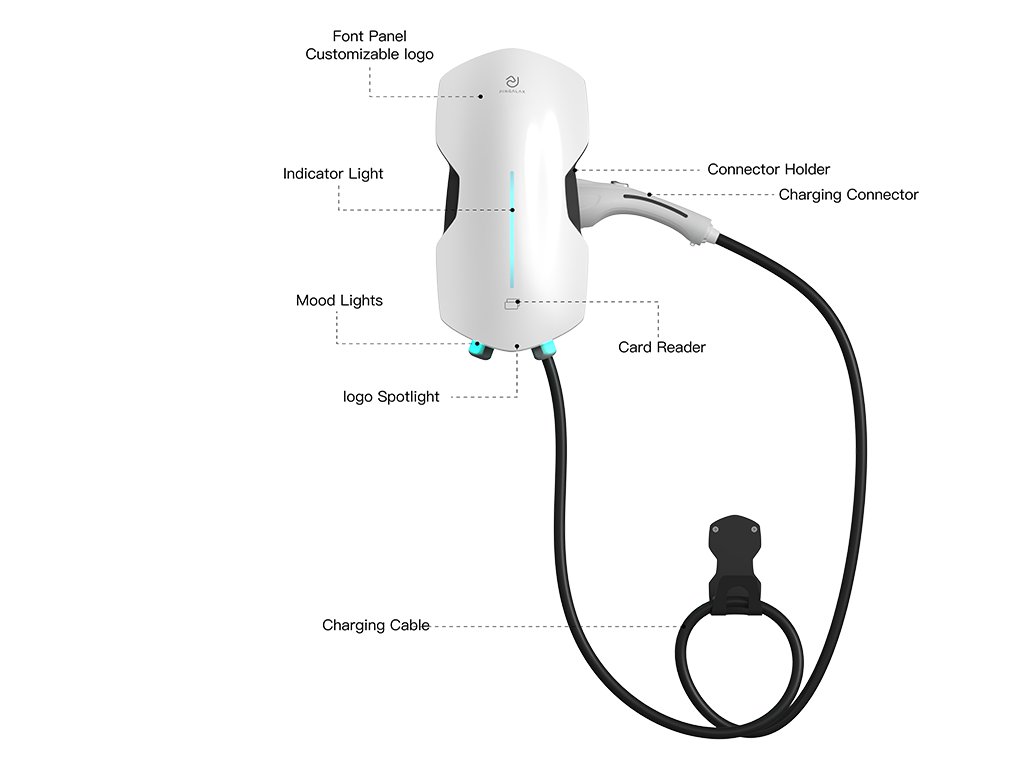

Wall Charger Pingalax J4-7kW

The Pingalax J4 Wall Charger is your ideal solution for fast and reliable electric vehicle charging. With a powerful 7kW output, this charger ensures your EV is always ready to go, cutting down charging time significantly. Its compact design and easy installation make it perfect for home garages or commercial spaces. Built with advanced safety features, the Pingalax J4 provides a secure, efficient charge every time. Compatible with most EV models, this wall charger is your go-to for convenient and eco-friendly charging.

Kindly note: For personal connection to charger is established via Bluetooth in Pingalax app. For commercial usage connection is available in El Charge through internet connection.

Specifications:

Power: 7kW
Output voltage: 230Vac±15%
Maximum output current: 32A
Connector: Type 2
Cable length: 5 meters
Communication protocol: OCPP1.6
Communication (personal use): Bluetooth only (Pingalax app)
Communication (commercial use): Internet (El Charge)
Charging control: RFID, App
Ingress Protection: IP54
Installation type: Wall-mounted
Safety Features: Over Current, Over Voltage, Under Voltage, Short Circuit, Over Temperature Protections, Reset Function
RCD: Type A+6mA
Power Measurement Accuracy ±1%
RFID: ISO/IEC 14443A/B, Mifare
Safety Compliance: CE, CB
Other Functions: OTA
Operating Temperature: -30℃～50℃
Storage Temperature: -40℃～70℃
Power Cooling: Natural-air-cooled
Working/Storage Humidity: ≤95%
Dimensions: 208mm×153mm×418mm
Net Weight: ≤5kg

Package Includes:
1x EV charger
1x Charging connector and cable (already fixed)
1x Hanger
1x User manual
1x Factory report
1x Certificate
1x Screw set
