Charging cable 4939 T2-T2 22KW 7M White/Black Elvix

Product detailed description

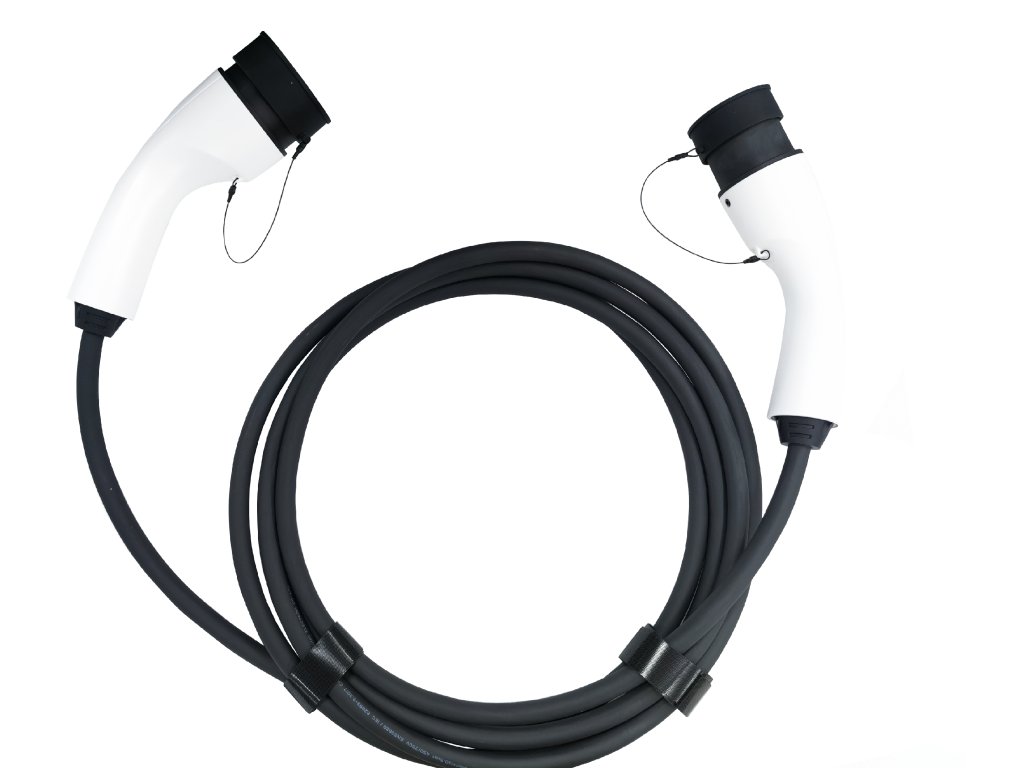

Charging cable Elvix 4939 T2-T2 22KW 7M White/Black

The Elvix 4939 is a high quality 32A 22KW charging cable for electric vehicles. It has a type 2 plug and a durable PC+ABS casing for ease of use and maximum protection. The 7 metre cable length, IP55 protection rating and lightweight design provide efficient and safe charging, making it a reliable choice for everyday use.

Specifications:

Plug: Type 2
OD: 16.5 5*6mm+1*0.5mm
Voltage: 240V
IP Rating: IP55
Withstand Voltage: 2500V
Insulation Resistance: >1000MΩ (DC500V)
Contact Resistance: 0.5mΩ Max
Gun Head: PA66 + 20% GF
Plastic Shell Fire Rating: UL94 V-0
Current: 32A
Cable Length: 7M
Coupled Insertion Force: <80N
Power: 22KW
Housing: PC+ABS
Weight: 2 kg

Package includes:
1x Charging cable Elvix 4939 T2-T2 22KW 7M White/Black
