Smart Power Meter MPM-220V60A-1-WF DIN
Code: 2416Related products
Product detailed description

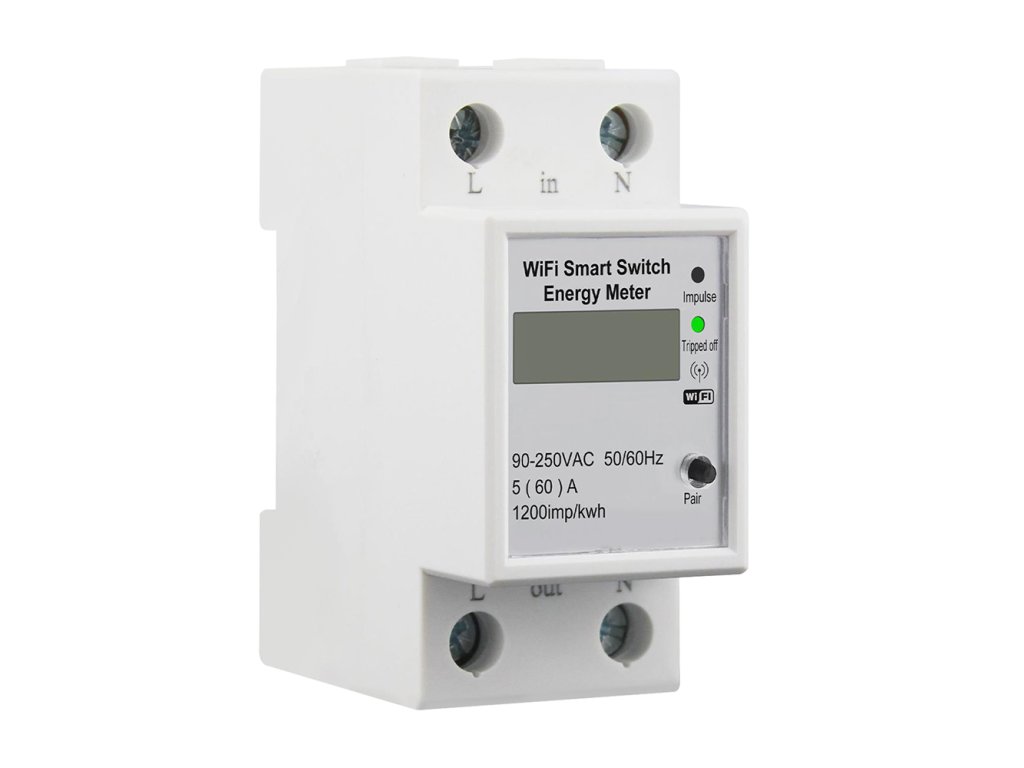

Smart Power Meter MPM-220V60A-1-WF DIN
The Smart Power Meter MPM-220V60A-1-WF DIN is a highly accurate energy metering device designed for remote monitoring of electrical consumption. With Wi-Fi connectivity and support for DIN rail mounting, it's perfect for integration in industrial or home automation systems.
Main Features
Wireless Protocol: Wi-Fi 2.4GHz (802.11 b/g/n)
Input / Voltage: AC 110~250V, 50/60 Hz
Max Load: 60A
Pulse Frequency: 1200 imp / kWh
Dimensions: 100×36×66 mm, 155 g
Operating Temperature: 10°C ~ +60°C
Mount Type: 35mm DIN rail
Material: PC V0 fire retardant
Software Support: Partizan (iOS, Android)
Download documentation
Additional parameters
| Category: | Smart Plugs and Energy Meters |
|---|---|
| Warranty: | 3 years |
| Weight: | 0.5 kg |
| EAN: | 5060491862490 |
| Material: | PC V0 |
| Operating temperature: | 10 to +60 °C |
| Wi-Fi: | yes |
| Consumption Measurement: | yes |
| Dimensions: | 100 × 36 × 66 mm |
| DIN rail: | yes |
| Input Voltage / Power Supply: | AC 110~250 V |
| Max. load: | 60 A |
| Partizan App: | yes |
| USB port: | no |
| Weight (g): | 155 |
| Wireless Protocol: | Wi-Fi 2,4 GHz |
| Zigbee: | no |
