Product detailed description

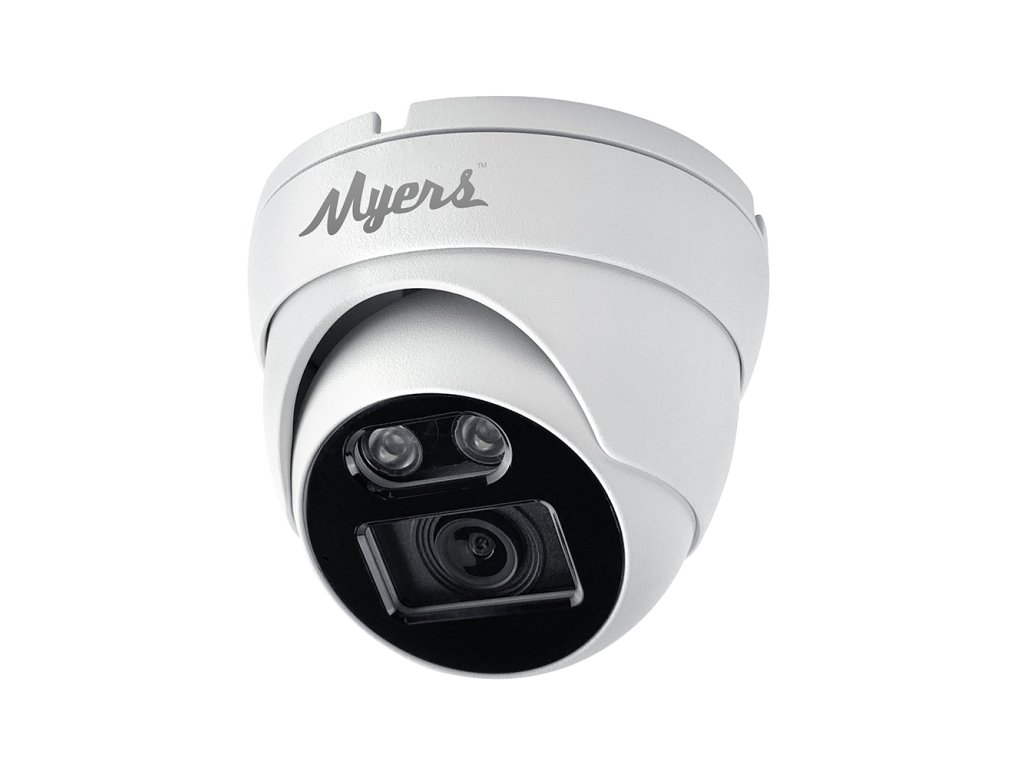

Myers 5MP Turret is a cloud-enabled IP camera from the Cloud series, featuring a 1/2.7" CMOS sensor capable of capturing video at resolutions up to 2880×1616 at 25 fps. This turret camera supports H.265 and H.265X video compression with a 2.8 mm spherical lens providing an 88° horizontal and 58° vertical field of view.
The camera incorporates smart analytics including human detection, intrusion detection, and line crossing detection. It features both white LED and IR LED illumination with a range of 25 meters, along with day/night modes offering auto, color, and black-and-white options. Video functions include AES, AGC, AWB, BLC, OSD, and privacy mask. The unit supports ONVIF 2.4+ protocol integration with cloud abilities for remote access, cloud recording, and PUSH notifications. The camera is compatible with Partizan mobile and desktop applications.
Housed in a metal enclosure with IP67 protection rating, the camera measures 94 mm diameter by 69 mm height and weighs 250 grams. Power options include 12V DC or PoE Class 0, with operating temperatures from -40°C to 60°C. A 3-year warranty is included.
Product details
| Model |
5MP Turret
|
| SKU |
5856
|
| Series |
Cloud series
|
Encoder
| Main stream |
2880x1616@25 fps, 2560x1440@25 fps, 2304x1296@25 fps, 1920x1080@25 fps, 1280x720@25 fps
|
| Sub stream |
720x576@20 fps, 352x288@20 fps, 320x240@20 fps
|
| Video codec |
H.265,
H.265X
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2.8x2.8 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
48 dB
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/25 - 1/10000 s
|
| Video functions |
AES,
AGC,
AWB,
BLC,
OSD,
Privacy mask
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.6
|
| Focal length |
2.8 mm
|
| Horizontal view |
88°
|
| Vertical view |
58°
|
IR LED
| LED type |
White LED,
IR LED
|
| Distance |
≤25 m
|
| Number of LEDs |
2 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
Partizan MAC protocol,
DDNS,
IP FILTER
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| ONVIF support |
ONVIF 2.4+
|
| ONVIF port |
8899
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Intrusion detection,
Line crossing detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Setup Tool,
Partizan
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
Ø94 x 69 mm
|
| Weight |
250 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
1000 mA
|
| DC power supply |
Not included
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
