Product detailed description

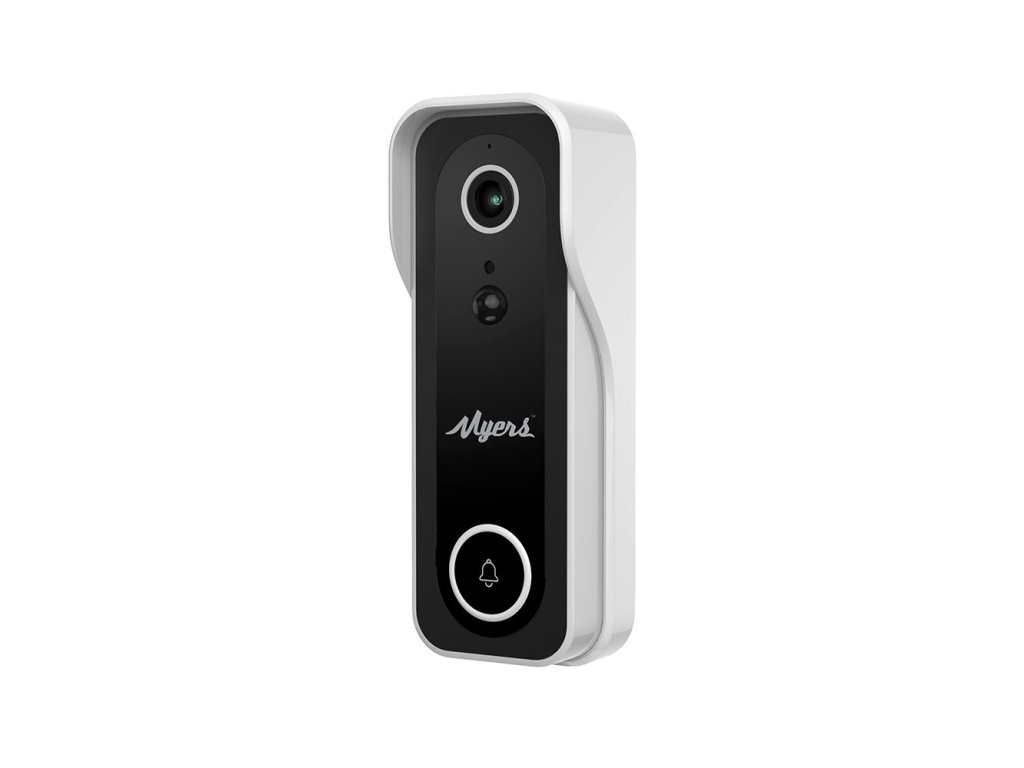

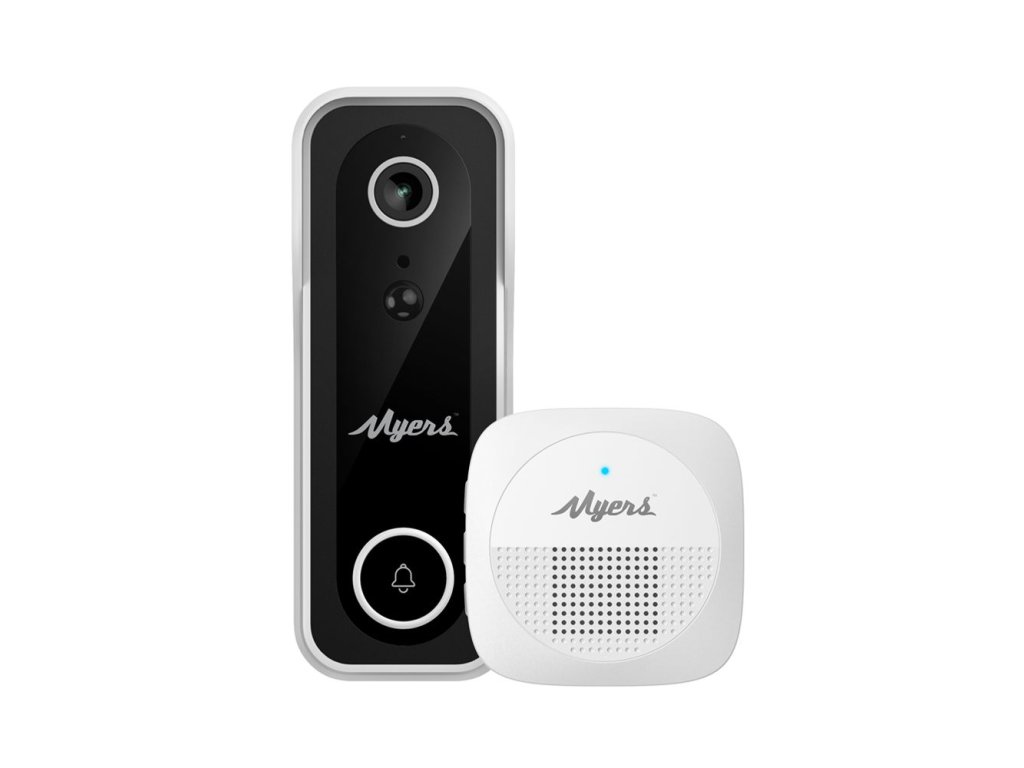

The Myers Doorbell Kit is an access control solution featuring a 1/2.8" CMOS sensor delivering 2560×1440 resolution with H.265 video compression. This complete kit includes a video doorbell with 126° wide-angle view and a wireless siren with 433 MHz connectivity, all supported by two-way audio communication and human detection analytics.
Key features
- ✓4MP resolution — 2560×1440 with 1/2.8" CMOS sensor
- ✓Two-way audio — built-in microphone and speaker with G711A/G711U codecs
- ✓Human detection — smart analytics via Partizan mobile app
- ✓Wide viewing angle — 126° field of view with 3.2mm focal length
- ✓Wireless connectivity — IEEE 802.11b/g/n Wi-Fi (2.4 GHz)
- ✓Built-in battery — 5200mAh capacity with low 1mA standby current
- ✓Wireless siren — 433 MHz with 50m range and 34 ringtones
- ✓Local storage — TF card support up to 256GB
The doorbell features IP65-rated weather protection and operates in temperatures from -20°C to 40°C with 20-95% humidity. It can be powered via DC 5V/2A, AC 24V, or internal battery. Package includes mounting kit and wiring set, backed by a 3-year warranty.
Doorbell
Encoder
| Video codec | H.265 |
|---|
| Audio codec | G711A, G711U |
|---|
| Two-way audio | yes |
|---|
Image sensor
| Sensor | 1/2.8" CMOS |
|---|
| Pixel size | 2.7x2.7 μm |
|---|
| Resolution | 2560x1440 |
|---|
| Day/Night mode | Auto, Manual |
|---|
| Sensitivity | 0.1Lux |
|---|
| Video functions | 3D DNR, IR-CUT, DWDR |
|---|
Lens
| Iris | F2.4 |
|---|
| Focal length | 3.2 mm |
|---|
| View angle | 126 ° |
|---|
IR LED
| Distance | ≤5 m |
|---|
| LED type | IR LED |
|---|
| Number of LEDs | 4pcs |
|---|
Network
| Wi-Fi | IEEE 802.11b/g/n (2.4 GHz) |
|---|
| Default IP address | DHCP |
|---|
Software
| Mobile app | Partizan |
|---|
| Smart analytics | Human detection |
|---|
| Languages | English, Arabic, Bosnian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Latvian, Lithuanian, Polish, Russian, Slovak, Serbian, Slovenian, Spanish, Swedish, Turkish, Ukranian |
|---|
External interfaces
| Mic | Built-in microphone |
|---|
| Speaker | Built-in speaker |
|---|
| TF сard support | ≤256 Gb |
|---|
| USB port | TYPE-C |
|---|
Mechanical specifications
| IP rating | IP65 |
|---|
| Dimensions | 137 x 48 x 25 mm |
|---|
| Weight | 217g |
|---|
| Housing material | Plastic |
|---|
Power
| DC power source | 5 V/2 A |
|---|
| AC power source | AC 24 V |
|---|
| Battery capacity | 5200mAh |
|---|
| Operating current | 190 mA |
|---|
| Standby current | ≤ 1 mA |
|---|
Operating conditions
| Humidity range | 20-95% RH (non-condensing) |
|---|
| Operating temperature | -20 - 40 °C |
|---|
| Storage temperature | -30 - 50 °C |
|---|

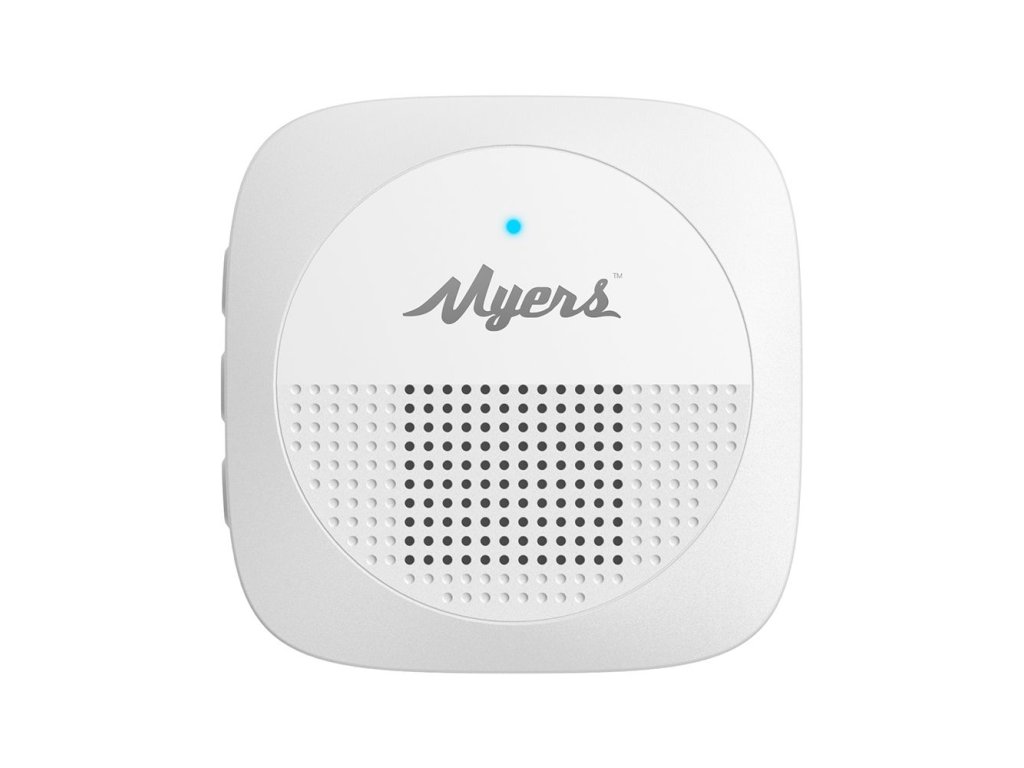

Chime
Specifications
| Radio frequency | 433MHz |
|---|
| Remote control distance | ≤ 50 m |
|---|
| Number of pairings | 15pcs |
|---|
Alarm specifications
| Alarm mode | Flash alarm |
|---|
| Number of ringtones | 34 |
|---|
| Ringtone volume | 20 - 100 dB |
|---|
Power
| Idle current | ≤ 129 μA |
|---|
| Battery type | (AAA) × 3 |
|---|
| Batteries (important note) | Batteries are not included in the package. |
|---|
Mechanical specification
| Dimensions | 66 x 66 x 26 mm |
|---|
| Weight | 60g |
|---|
| Housing material | Plastic |
|---|
Operating conditions
| Humidity range | 20-95% RH (non-condensing) |
|---|
| Operating temperature | -20 - 40 °C |
|---|
| Storage temperature | -30 - 50 °C |
|---|
Common
| Package content | Mounting kit, Set of wires |
|---|
| Warranty | 3 years |
|---|
