Product detailed description

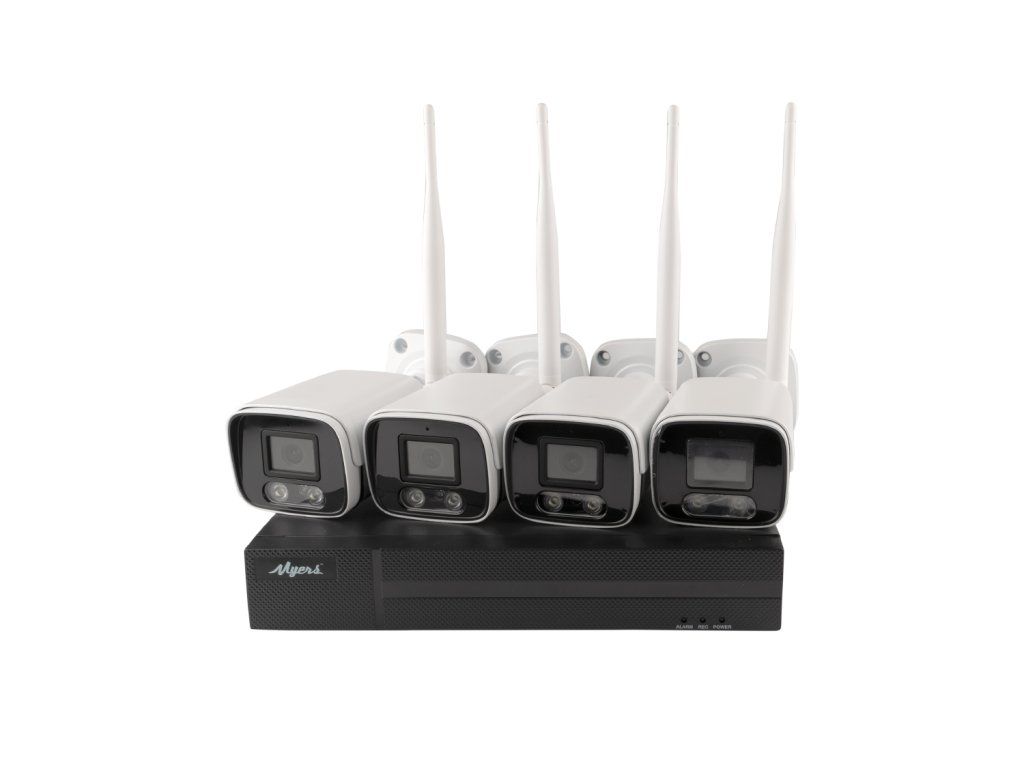

The Myers 8CH WIFI KIT 4xBullet 5MP is a complete CCTV surveillance kit from the Cloud series, featuring an 8-channel NVR paired with four 5MP bullet cameras. This system supports H.264/H.265 video compression, offers smart analytics including human, vehicle, and face detection, and provides remote access via cloud services and the Partizan mobile app.
Key features
- ✓5MP resolution cameras — main stream at 2880×1616 @ 20fps
- ✓Smart analytics — human, vehicle, face, line crossing, and intrusion detection
- ✓Night vision — IR and white LED illumination up to 25m
- ✓Weatherproof cameras — IP67-rated metal housing
- ✓Flexible storage — supports up to 14TB internal HDD
- ✓Cloud connectivity — remote access, cloud recording, and PUSH notifications
- ✓Dual video outputs — VGA and HDMI up to 1920×1080
- ✓3-year warranty — includes power adapter, mouse, and Ethernet cable
The NVR operates at 12V DC (power supply included) and functions within -40°C to 60°C. The bullet cameras are rated for -20°C to 40°C operation with 20-95% humidity tolerance. Desktop form factor with metal housing measures 255×215×43mm.
Product details
| Model |
Myers 8CH WIFI KIT 4xBullet
|
| Version |
5MP
|
| SKU |
7662
|
| Series |
Cloud series
|

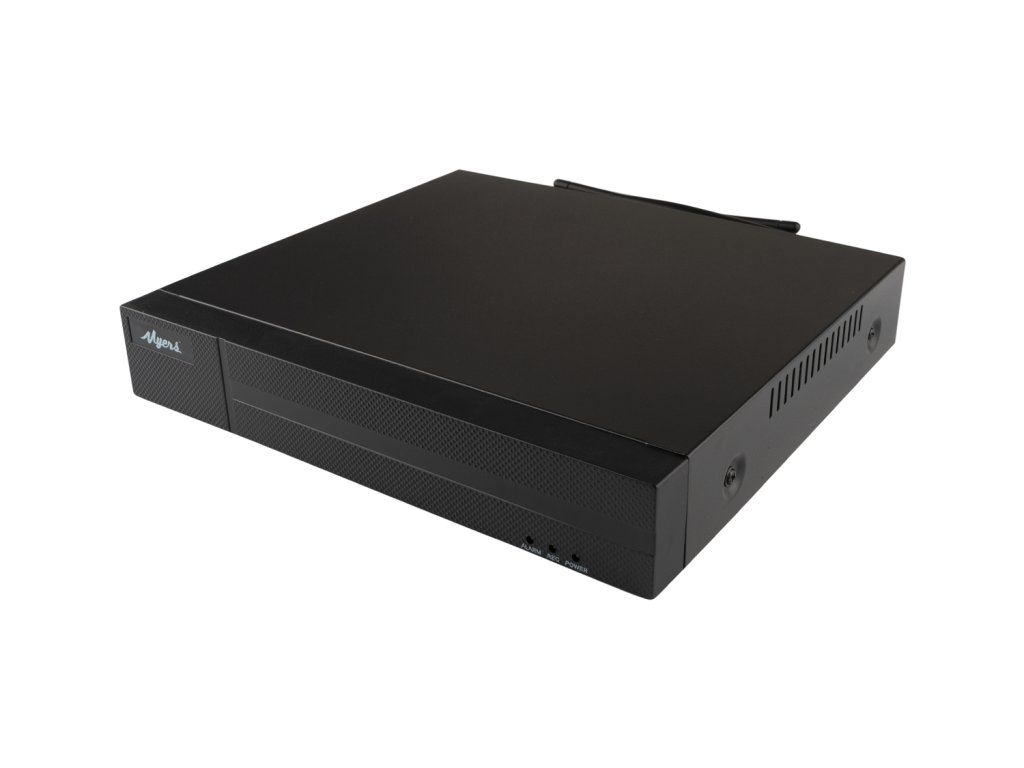

NVR
Encoder
| Maximum cameras |
8 pcs
|
| Recording modes (IP) |
8x5MP@20 fps
|
| Video codec |
H.264,
H.265
|
Graphical user interface
| Display resolution |
1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768
|
| Video splitter modes |
1,
2,
4,
6,
8,
9
|
| Languages |
English,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech,
Russian,
German,
Spanish,
Hebrew
|
Storage
| Internal HDD |
1 x 14 TB
|
| HDD storage (important note) |
For reliable 24/7 operation, it is strongly recommended to use HDDs specifically designed for video surveillance systems. Hard disk drive is not included in the package.
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
TCP/IP,
ICMP,
HTTP,
HTTPS,
FTP,
DHCP,
DNS,
DDNS,
RTP/RTSP,
RTCP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Line crossing detection,
Intrusion detection,
Face detection,
Vechicle detection
|
| Smart analytics (important note) |
Smart alarms can only be used with Cloud-series IP cameras
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Myers,
Myers Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|

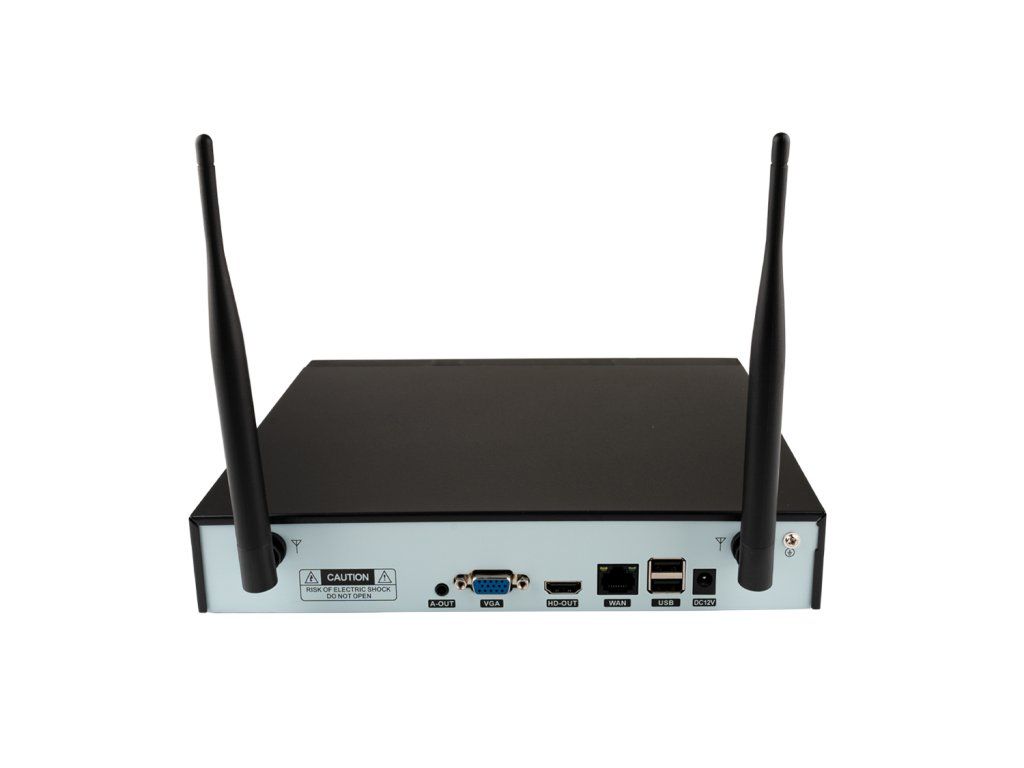

External interfaces
| Video output |
VGA,
HDMI
|
| Audio inputs |
1
|
| Audio outputs |
1
|
| USB ports |
2 x USB 2.0
|
Mechanical specifications
| Form factor |
Desktop
|
| Front panel material |
Plastic
|
| Housing material |
Metal
|
| Dimensions |
255 x 43 x 215 mm
|
| Weight |
630 g
|
Power
| DC power source |
12 V
|
| DC consumption |
2000 mA
|
| DC power supply |
Included
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Optical mouse,
Power adapter,
Ethernet cable
|
| Warranty |
3 years
|

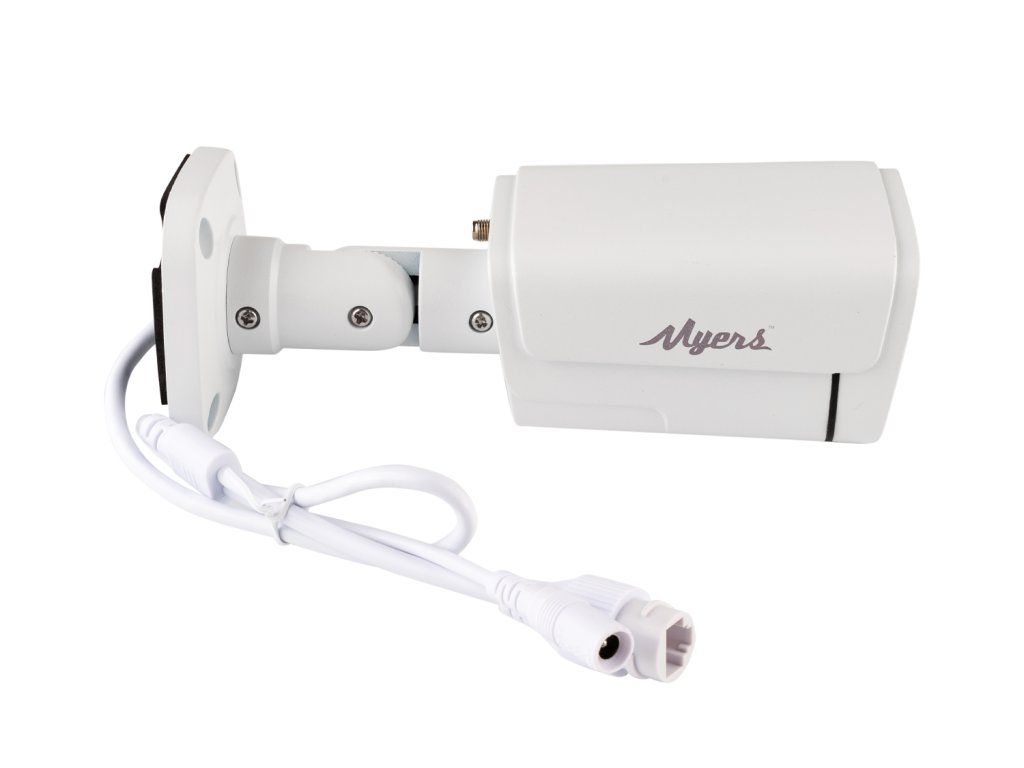

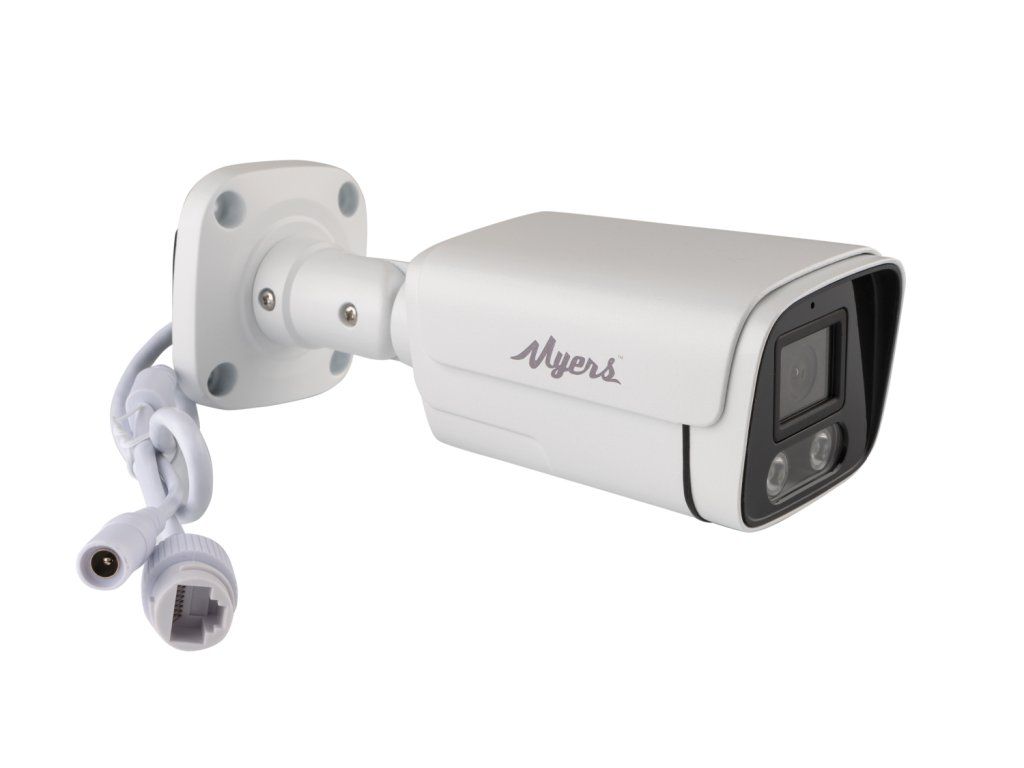

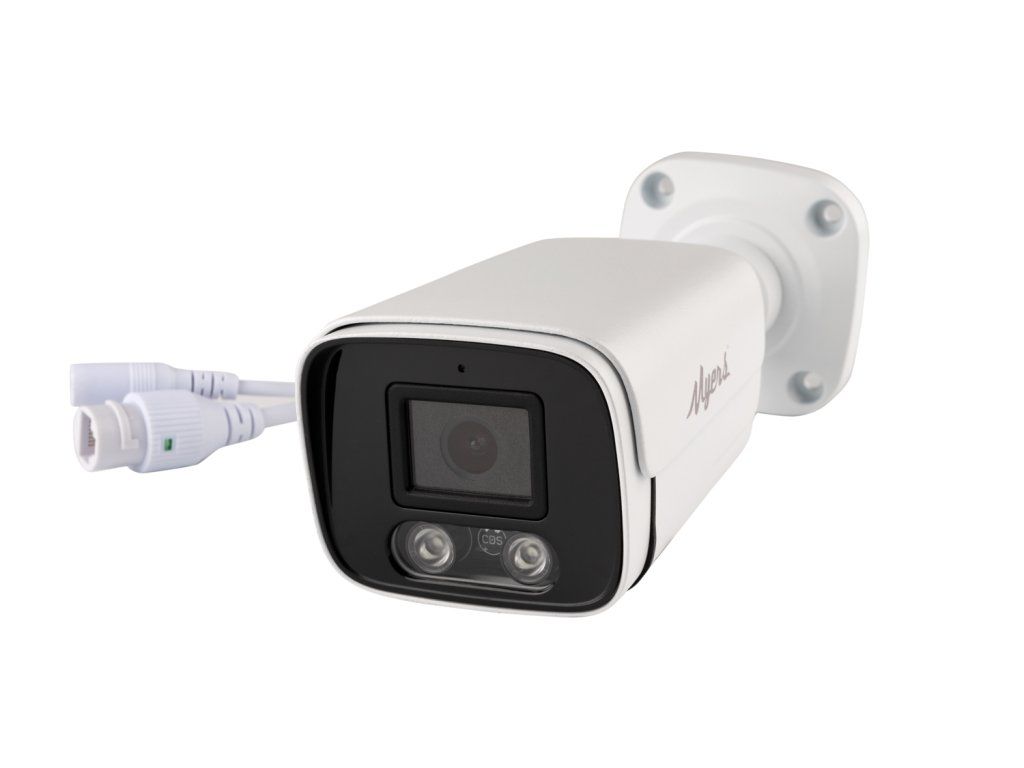

IP Camera
Encoder
| Main stream |
2880x1616@20 fps
|
| Sub stream |
640x360@20 fps
|
| Video codec |
H.264,
H.265
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2,8x2,8 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
≤48 dB
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/25 - 1/10000 s
|
| Video functions |
AEC,
AGC,
AWB,
ABF,
BLC,
OSD,
Privacy mask
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1,4
|
| Focal length |
3,6 mm
|
| Horizontal view |
77°
|
| Vertical view |
61°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤25 m
|
| Number of LEDs |
4 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
IP FILTER,
DDNS
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
110 x 70 x 60 mm
|
| Weight |
350 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumption |
1000 mA
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-20 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
Common
| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
